OVER ALL DIMENSIONS 2/23

—

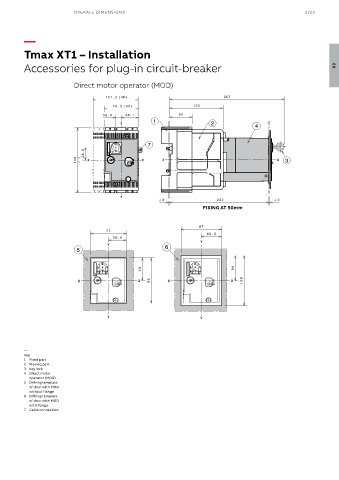

Tmax XT1 – Installation

Accessories for plug-in circuit-breaker 02

Direct motor operator (MOD)

FIXING AT 50mm

—
Key
1 Fixed part
2 Moving part
3 Key lock
4 Direct motor
operator (MOD)
5 Drilling template
of door with MOD
without flange
6 Drilling template
of door with MOD
with flange
7 Cable connection
