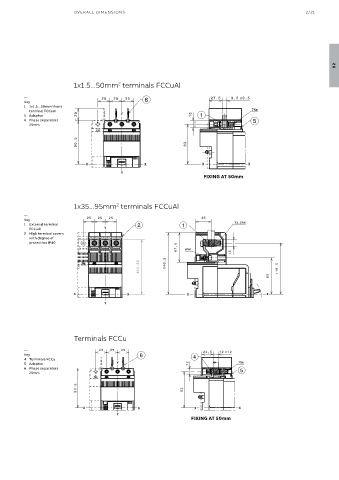

OVER ALL DIMENSIONS 2/21

02

1x1.5...50mm terminals FCCuAl
2
—
Key
1 1x1.5...50mm 2 front
terminal FCCuAl
5 Adaptor
6 Phase separators
25mm

FIXING AT 50mm

1x35...95mm terminals FCCuAl
2
—
Key
1 External terminal
FCCuAl
2 High terminal covers
with degree of
protection IP40

Terminals FCCu

—
Key
4 Terminals FCCu
5 Adaptor
6 Phase separators
25mm

FIXING AT 50mm
