Page 119 - SACE Tmax XT - Technical Catalogue

OVER ALL DIMENSIONS 2/39

02

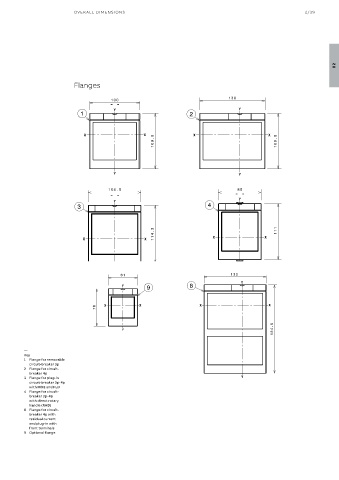

Flanges

—
Key
1 Flange for removable
circuit-breaker 3p
2 Flange for circuit-
breaker 4p
3 Flange for plug-in
circuit-breaker 3p-4p
with MOE and FLD
4 Flange for circuit-
breaker 3p-4p
with direct rotary
handle (RHD)
8 Flange for circuit-
breaker 4p with
residual current
and plug-in with
front terminals
9 Optional flange
