2/40 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

Tmax XT2 – Installation

Installation for plug-in circuit-breaker

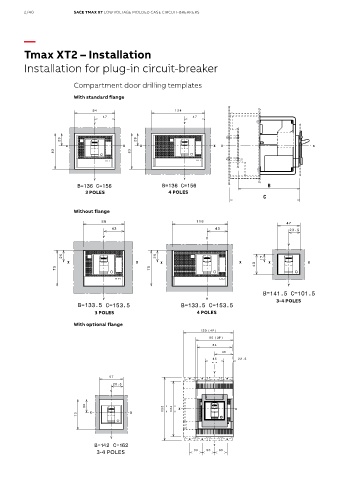

Compartment door drilling templates

With standard flange

3 POLES 4 POLES

Without flange

3-4 POLES

3 POLES 4 POLES
With optional flange

3-4 POLES
