OVER ALL DIMENSIONS 2/41

—

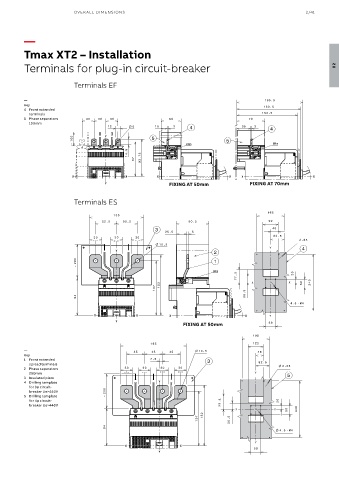

Tmax XT2 – Installation

Terminals for plug-in circuit-breaker 02

Terminals EF

—
Key
4 Front extended
terminals
5 Phase separators
100mm

FIXING AT 50mm FIXING AT 70mm

Terminals ES

FIXING AT 50mm

—
Key
1 Front extended
spread terminals
2 Phase separators
200mm
3 Insulated plate
4 Drilling template
for 3p circuit-
breaker Ue>440V
5 Drilling template
for 4p circuit-
breaker Ue>440V
