2/42 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

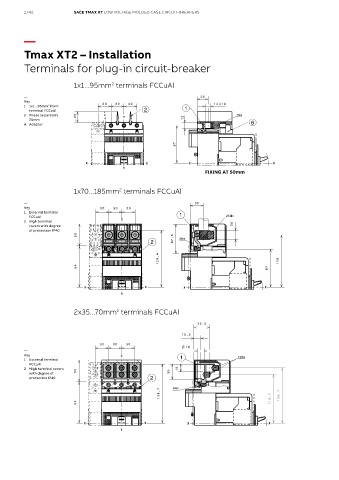

Tmax XT2 – Installation

Terminals for plug-in circuit-breaker

1x1...95mm terminals FCCuAl
2
—
Key
1 1x1...95mm 2 front
terminal FCCuAl
2 Phase separators
25mm
6 Adaptor

FIXING AT 50mm

2
1x70...185mm terminals FCCuAl
—
Key
1 External terminal
FCCuAl
2 High terminal
covers with degree
of protection IP40

2x35...70mm terminals FCCuAl
2

—
Key
1 External terminal
FCCuAl
2 High terminal covers
with degree of
protection IP40
