OVER ALL DIMENSIONS 2/59
02

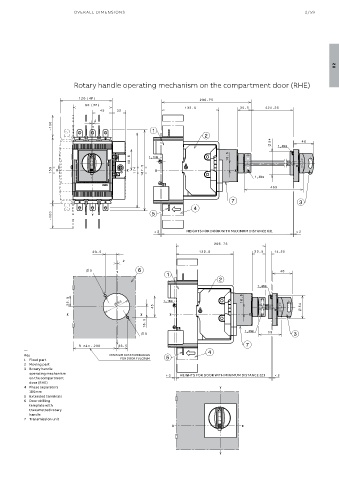

Rotary handle operating mechanism on the compartment door (RHE)
HEIGHTS FOR DOOR WITH MAXIMUM DISTANCE 631
—
Key MINIMUM ROTATION RADIUS
1 Fixed part FOR DOOR FULCRUM
2 Moving part
3 Rotary handle
operating mechanism HEIGHTS FOR DOOR WITH MINIMUM DISTANCE 221
on the compartment
door (RHE)
4 Phase separators
100mm
5 Extended terminals
6 Door drilling
template with
transmetted rotary
handle
7 Transmission unit
