2/58 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

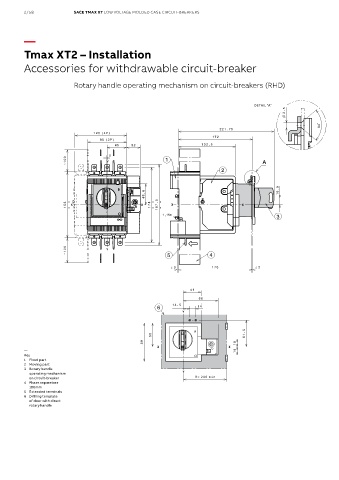

Tmax XT2 – Installation

Accessories for withdrawable circuit-breaker

Rotary handle operating mechanism on circuit-breakers (RHD)

DETAIL "A"

—
Key
1 Fixed part
2 Moving part
3 Rotary handle
operating mechanism
on circuit-breaker
4 Phase separators
100mm
5 Extended terminals
6 Drilling template
of door with direct
rotary handle
