2/60 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

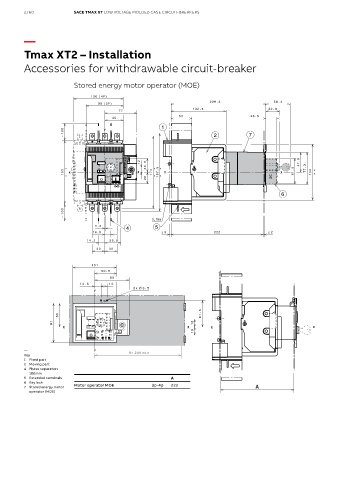

Tmax XT2 – Installation

Accessories for withdrawable circuit-breaker

Stored energy motor operator (MOE)

—
Key
1 Fixed part
2 Moving part
4 Phase separators
100mm
5 Extended terminals A
6 Key lock
7 Stored energy motor Motor operator MOE 3p-4p 222
operator (MOE)
