P. 142

2/62             SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

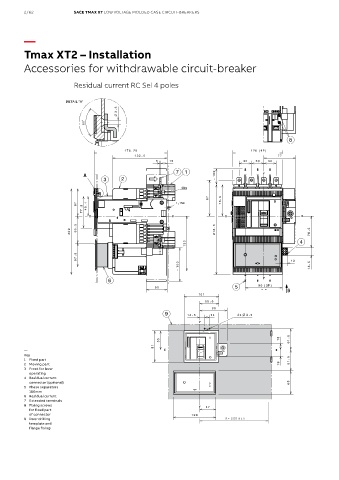

          Tmax XT2 – Installation


          Accessories for withdrawable circuit-breaker


                           Residual current RC Sel 4 poles


                        DETAIL "A"




















































          —
          Key
          1  Fixed part
          2  Moving part
          3  Front for lever
           operating
          4  Residual current
           connector (optional)
          5  Phase separators
           100mm
          6  Residual current
          7  Extended terminals
          8  Fixing screws
           for fixed part
           of connector
          9  Door drilling
           template and
           flange fixing
