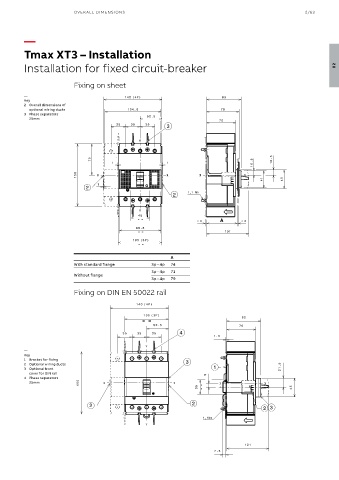

OVER ALL DIMENSIONS 2/63
—
Tmax XT3 – Installation
Installation for fixed circuit-breaker 02
Fixing on sheet
—
Key
2 Overall dimensions of
optional wiring ducts
3 Phase separators
25mm
A
With standard flange 3p - 4p 74
3p - 4p 71
Without flange
3p - 4p 79
Fixing on DIN EN 50022 rail
—
Key
1 Bracket for fixing
2 Optional wiring ducts
3 Optional front
cover for DIN rail
4 Phase separators
25mm
