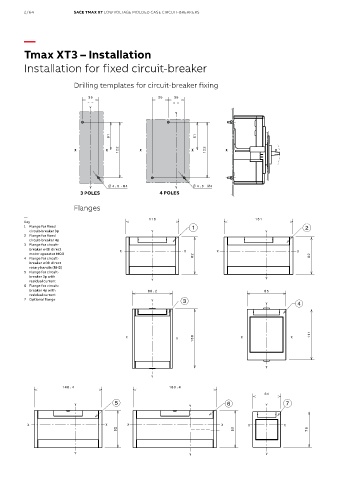

Tmax XT3 – Installation

Installation for fixed circuit-breaker

Drilling templates for circuit-breaker fixing

3 POLES 4 POLES

Flanges
—
Key
1 Flange for fixed
circuit-breaker 3p
2 Flange for fixed
circuit-breaker 4p
3 Flange for circuit-
breaker with direct
motor operator MOD
4 Flange for circuit-
breaker with direct
rotary handle (RHD)
5 Flange for circuit-
breaker 3p with
residual current
6 Flange for circuit-
breaker 4p with
residual current
7 Optional flange
