2/154            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

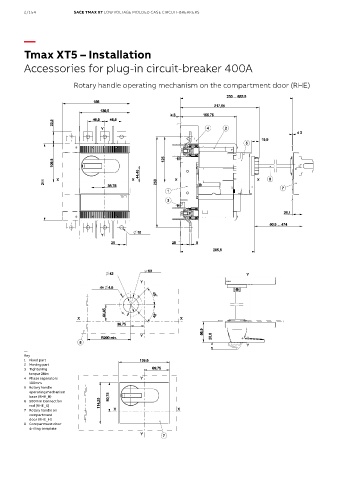

          Tmax XT5 – Installation


          Accessories for plug-in circuit-breaker 400A


                           Rotary handle operating mechanism on the compartment door (RHE)
























































          —
          Key
          1   Fixed part
          2   Moving part
          3   Tightening
           torque 2Nm
          4   Phase separators
           100mm
          5   Rotary handle
           operating mechanism
           base (RHE_B)
          6   500mm Connection
           rod (RHE_S)
          7   Rotary handle on
           compartment
           door (RHE_H)
          8   Compartment door
           drilling template
