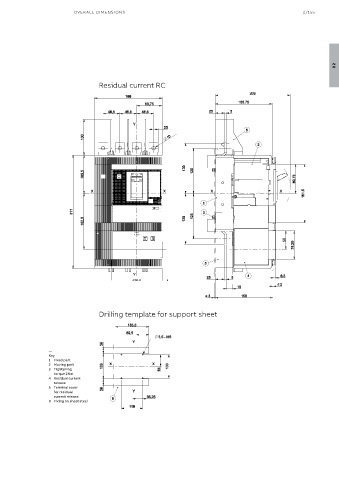

OVER ALL DIMENSIONS                                                             2/155










                                                                                                                       02


                                    Residual current RC
















































                                    Drilling template for support sheet






                  —
                  Key
                  1   Fixed part
                  2  Moving part
                  3  Tightening
                    torque 2Nm
                  4  Residual current
                    release
                  5  Terminal cover
                    for residual
                    current release
                  8  Fixing on sheet steel
