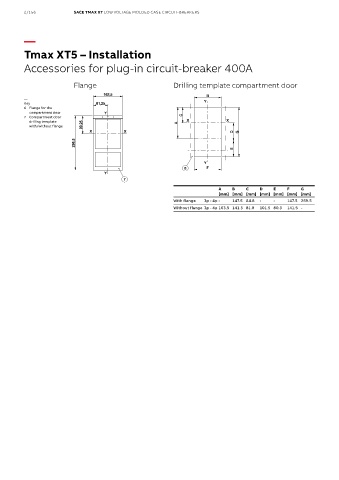

Tmax XT5 – Installation

Accessories for plug-in circuit-breaker 400A

Flange Drilling template compartment door

—
Key
6 Flange for the
compartment door
7 Compartment door
drilling template
with/without flange

A B C D E F G
[mm] [mm] [mm] [mm] [mm] [mm] [mm]
With flange 3p - 4p - 147.5 84.8 - - 147.5 269.5
Without flange 3p - 4p 163.5 141.5 81.8 101.5 80.3 141.5 -
