2/12 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

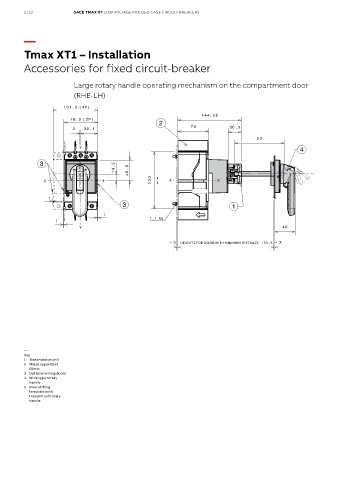

Tmax XT1 – Installation

Accessories for fixed circuit-breaker

Large rotary handle operating mechanism on the compartment door
(RHE-LH)

HEIGHTS FOR DOOR WITH MINIMUM DISTANCE

—
Key
1 Transmission unit
2 Phase separators
25mm
3 Optional wiring ducts
4 Wide type rotary
handle
5 Door drilling
template with
transmitted rotary
handle
