OVER ALL DIMENSIONS 2/15
02

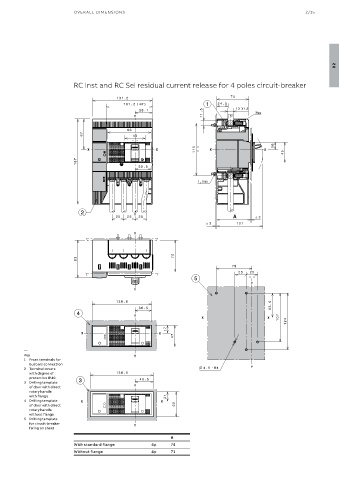

RC Inst and RC Sel residual current release for 4 poles circuit-breaker
—
Key
1 Front terminals for
busbars connection
2 Terminal covers
with degree of
protection IP40
3 Drilling template
of door with direct
rotary handle
with flange
4 Drilling template
of door with direct
rotary handle
without flange
5 Drilling template
for circuit-breaker
fixing on sheet
A
With standard flange 4p 74
Without flange 4p 71
