2/16 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

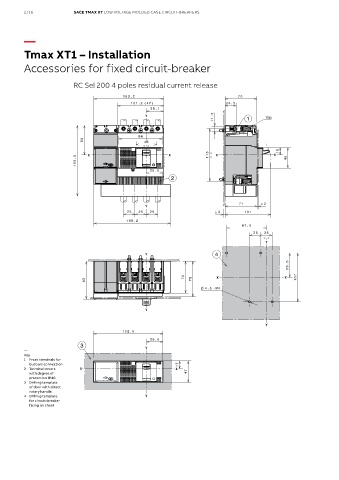

Tmax XT1 – Installation

Accessories for fixed circuit-breaker

RC Sel 200 4 poles residual current release

—
Key
1 Front terminals for
busbars connection
2 Terminal covers
with degree of
protection IP40
3 Drilling template
of door with direct
rotary handle
4 Drilling template
for circuit-breaker
fixing on sheet
