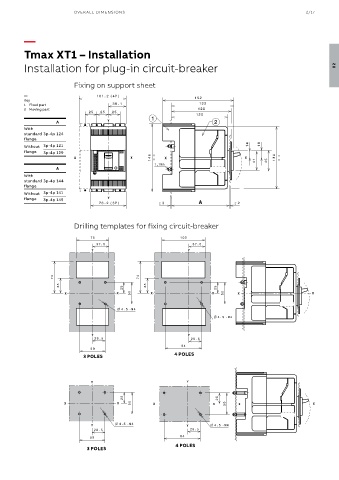

Page 97 - SACE Tmax XT - Technical Catalogue

OVER ALL DIMENSIONS 2/17

—

Tmax XT1 – Installation

Installation for plug-in circuit-breaker 02

Fixing on support sheet
—
Key
1 Fixed part
2 Moving part
A
With
standard 3p-4p 124
flange
Without 3p-4p 121
flange 3p-4p 129

A
With
standard 3p-4p 144
flange
Without 3p-4p 141
flange 3p-4p 149

Drilling templates for fixing circuit-breaker

3 POLES 4 POLES

4 POLES
3 POLES
