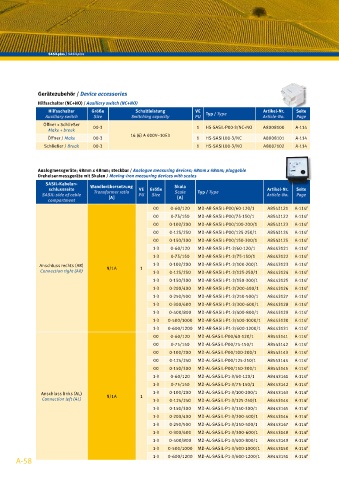

Page 61 - sasil-plus-catalogue-2009

SASILplus / SASILplus

Gerätezubehör / Device accessories
Hilfsschalter (NC+NO) / Auxiliary switch (NC+NO)
Hilfsschalter Größe Schaltleistung VE Artikel-Nr. Seite
Auxiliary switch Size Switching capacity PU Typ / Type Article-No. Page
Öffner + Schließer 00-3 1 HS-SASIL-P00-3/NC+NO A8008100 A-114
Make + break
16 (6) A 400V~10E3
Öffner / Make 00-3 1 HS-SASIL00-3/NC A8008101 A-114
Schließer / Break 00-3 1 HS-SASIL00-3/NO A8007102 A-114

Analogmessgeräte; 48mm x 48mm; steckbar / Analogue measuring devices; 48mm x 48mm; pluggable
Dreheisenmessgeräte mit Skalen / Moving-iron measuring devices with scales
SASIL-Kabelan- Wandlerübersetzung Skala
schlussseite VE Größe Artikel-Nr. Seite
SASIL-side of cable Transformer ratio PU Size Scale Typ / Type Article-No. Page
[A]
[A]
compartment
00 0-60/120 MD-AR-SASIL-P00/60-120/1 A8543121 A-114f
00 0-75/150 MD-AR-SASIL-P00/75-150/1 A8543122 A-114f
00 0-100/200 MD-AR-SASIL-P00/100-200/1 A8543123 A-114f
00 0-125/250 MD-AR-SASIL-P00/125-250/1 A8543124 A-114f
00 0-150/300 MD-AR-SASIL-P00/150-300/1 A8543125 A-114f
1-3 0-60/120 MD-AR-SASIL-P1-3/60-120/1 A8443121 A-114f
1-3 0-75/150 MD-AR-SASIL-P1-3/75-150/1 A8443122 A-114f
Anschluss rechts (AR) N/1A 1 1-3 0-100/200 MD-AR-SASIL-P1-3/100-200/1 A8443123 A-114f
Connection right (AR) 1-3 0-125/250 MD-AR-SASIL-P1-3/125-250/1 A8443124 A-114f
1-3 0-150/300 MD-AR-SASIL-P1-3/150-300/1 A8443125 A-114f
1-3 0-200/400 MD-AR-SASIL-P1-3/200-400/1 A8443126 A-114f
1-3 0-250/500 MD-AR-SASIL-P1-3/250-500/1 A8443127 A-114f
1-3 0-300/600 MD-AR-SASIL-P1-3/300-600/1 A8443128 A-114f
1-3 0-400/800 MD-AR-SASIL-P1-3/400-800/1 A8443129 A-114f
1-3 0-500/1000 MD-AR-SASIL-P1-3/500-1000/1 A8443130 A-114f
1-3 0-600/1200 MD-AR-SASIL-P1-3/600-1200/1 A8443131 A-114f
00 0-60/120 MD-AL-SASIL-P00/60-120/1 A8543141 A-114f
00 0-75/150 MD-AL-SASIL-P00/75-150/1 A8543142 A-114f
00 0-100/200 MD-AL-SASIL-P00/100-200/1 A8543143 A-114f
00 0-125/250 MD-AL-SASIL-P00/125-250/1 A8543144 A-114f
00 0-150/300 MD-AL-SASIL-P00/150-300/1 A8543145 A-114f
1-3 0-60/120 MD-AL-SASIL-P1-3/60-120/1 A8443141 A-114f
1-3 0-75/150 MD-AL-SASIL-P1-3/75-150/1 A8443142 A-114f
Anschluss links (AL) N/1A 1 1-3 0-100/200 MD-AL-SASIL-P1-3/100-200/1 A8443143 A-114f
Connection left (AL) 1-3 0-125/250 MD-AL-SASIL-P1-3/125-250/1 A8443144 A-114f
1-3 0-150/300 MD-AL-SASIL-P1-3/150-300/1 A8443145 A-114f
1-3 0-200/400 MD-AL-SASIL-P1-3/200-400/1 A8443146 A-114f
1-3 0-250/500 MD-AL-SASIL-P1-3/250-500/1 A8443147 A-114f
1-3 0-300/600 MD-AL-SASIL-P1-3/300-600/1 A8443148 A-114f
1-3 0-400/800 MD-AL-SASIL-P1-3/400-800/1 A8443149 A-114f
1-3 0-500/1000 MD-AL-SASIL-P1-3/500-1000/1 A8443150 A-114f
A-58 1-3 0-600/1200 MD-AL-SASIL-P1-3/600-1200/1 A8443151 A-114f
