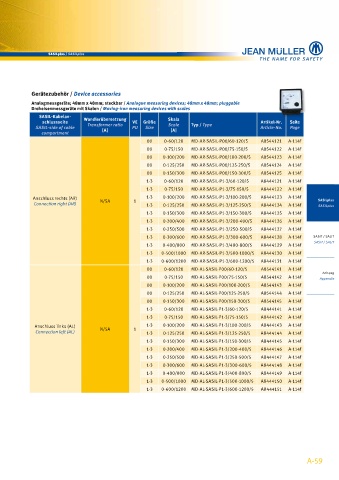

Page 62 - sasil-plus-catalogue-2009

SASILplus / SASILplus

Gerätezubehör / Device accessories
Analogmessgeräte; 48mm x 48mm; steckbar / Analogue measuring devices; 48mm x 48mm; pluggable
Dreheisenmessgeräte mit Skalen / Moving-iron measuring devices with scales
SASIL-Kabelan- Wandlerübersetzung Skala
schlussseite VE Größe Artikel-Nr. Seite
SASIL-side of cable Transformer ratio PU Size Scale Typ / Type Article-No. Page
[A]
[A]
compartment
00 0-60/120 MD-AR-SASIL-P00/60-120/5 A8544121 A-114f
00 0-75/150 MD-AR-SASIL-P00/75-150/5 A8544122 A-114f
00 0-100/200 MD-AR-SASIL-P00/100-200/5 A8544123 A-114f
00 0-125/250 MD-AR-SASIL-P00/125-250/5 A8544124 A-114f
00 0-150/300 MD-AR-SASIL-P00/150-300/5 A8544125 A-114f
1-3 0-60/120 MD-AR-SASIL-P1-3/60-120/5 A8444121 A-114f
1-3 0-75/150 MD-AR-SASIL-P1-3/75-150/5 A8444122 A-114f
Anschluss rechts (AR) 1-3 0-100/200 MD-AR-SASIL-P1-3/100-200/5 A8444123 A-114f SASILplus
Connection right (AR) N/5A 1 1-3 0-125/250 MD-AR-SASIL-P1-3/125-250/5 A8444124 A-114f SASILplus
1-3 0-150/300 MD-AR-SASIL-P1-3/150-300/5 A8444125 A-114f
1-3 0-200/400 MD-AR-SASIL-P1-3/200-400/5 A8444126 A-114f
1-3 0-250/500 MD-AR-SASIL-P1-3/250-500/5 A8444127 A-114f
1-3 0-300/600 MD-AR-SASIL-P1-3/300-600/5 A8444128 A-114f SASIT / SALIT
SASIT / SALIT
1-3 0-400/800 MD-AR-SASIL-P1-3/400-800/5 A8444129 A-114f
1-3 0-500/1000 MD-AR-SASIL-P1-3/500-1000/5 A8444130 A-114f
1-3 0-600/1200 MD-AR-SASIL-P1-3/600-1200/5 A8444131 A-114f
00 0-60/120 MD-AL-SASIL-P00/60-120/5 A8544141 A-114f
Anhang
00 0-75/150 MD-AL-SASIL-P00/75-150/5 A8544142 A-114f Appendix
00 0-100/200 MD-AL-SASIL-P00/100-200/5 A8544143 A-114f
00 0-125/250 MD-AL-SASIL-P00/125-250/5 A8544144 A-114f
00 0-150/300 MD-AL-SASIL-P00/150-300/5 A8544145 A-114f
1-3 0-60/120 MD-AL-SASIL-P1-3/60-120/5 A8444141 A-114f
1-3 0-75/150 MD-AL-SASIL-P1-3/75-150/5 A8444142 A-114f
Anschluss links (AL) N/5A 1 1-3 0-100/200 MD-AL-SASIL-P1-3/100-200/5 A8444143 A-114f
Connection left (AL) 1-3 0-125/250 MD-AL-SASIL-P1-3/125-250/5 A8444144 A-114f
1-3 0-150/300 MD-AL-SASIL-P1-3/150-300/5 A8444145 A-114f
1-3 0-200/400 MD-AL-SASIL-P1-3/200-400/5 A8444146 A-114f
1-3 0-250/500 MD-AL-SASIL-P1-3/250-500/5 A8444147 A-114f
1-3 0-300/600 MD-AL-SASIL-P1-3/300-600/5 A8444148 A-114f
1-3 0-400/800 MD-AL-SASIL-P1-3/400-800/5 A8444149 A-114f
1-3 0-500/1000 MD-AL-SASIL-P1-3/500-1000/5 A8444150 A-114f
1-3 0-600/1200 MD-AL-SASIL-P1-3/600-1200/5 A8444151 A-114f

A-59
