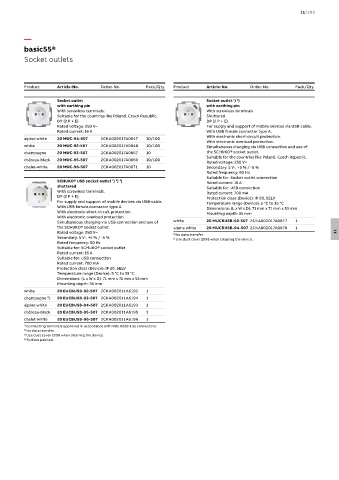

Page 1399 - Din prodcuts 2020

11/293

—
basic55®
Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2
Socket outlet Socket outlet ) )
1
with earthing pin with earthing pin
With screwless terminals. With screwless terminals.
Suitable for the countries like Poland, Czech Republic. Shuttered.
DP (2 P + E) DP (2 P + E)
Rated voltage: 250 V~ For supply and support of mobile devices via USB-cable.
Rated current: 16 A With USB female connector type A.
With electronic short-circuit protection.
alpine white 20 MUC-94-507 2CKA002017A0847 10/100
With electronic overload protection.
white 20 MUC-92-507 2CKA002017A0848 10/100 Simultaneous charging via USB connection and use of
champagne 20 MUC-93-507 2CKA002017A0867 10 the SCHUKO® socket outlet.
Suitable for the countries like Poland, Czech Republic.
château-black 20 MUC-95-507 2CKA002017A0869 10/100
Rated voltage: 250 V~
chalet-white 20 MUC-96-507 2CKA002017A0871 10 Secondary: 5 V-, +5 % / -5 %
Rated frequency: 50 Hz
Suitable for: Socket outlet connection
SCHUKO® USB socket outlet ) ) ) Rated current: 16 A
1
2
3
shuttered Suitable for: USB connection
With screwless terminals. Rated current: 700 mA
DP (2 P + E) Protection class (Device): IP 20, SELV
For supply and support of mobile devices via USB-cable. Temperature range (Device): 5 °C to 35 °C
With USB female connector type A. Dimensions: (L x W x D): 71 mm x 71 mm x 53 mm
With electronic short-circuit protection. Mounting depth: 35 mm
With electronic overload protection.
Simultaneous charging via USB connection and use of white 20 MUCBUSB-92-507 2CKA002017A0877 1
the SCHUKO® socket outlet. alpine white 20 MUCBUSB-94-507 2CKA002017A0878 1
Rated voltage: 250 V~ 1) No data transfer. 11
Secondary: 5 V-, +5 % / -5 % 2) Use dust cover 2098 when cleaning the device.
Rated frequency: 50 Hz
Suitable for: SCHUKO® socket outlet
Rated current: 16 A
Suitable for: USB connection
Rated current: 700 mA
Protection class (Device): IP 20, SELV
Temperature range (Device): 5 °C to 35 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 53 mm
Mounting depth: 35 mm
white 20 EUCBUSB-92-507 2CKA002011A6192 1
champagne ) 20 EUCBUSB-93-507 2CKA002011A6194 1
4
alpine white 20 EUCBUSB-94-507 2CKA002011A6193 1
château-black 20 EUCBUSB-95-507 2CKA002011A6195 1
chalet-white 20 EUCBUSB-96-507 2CKA002011A6196 1
1) Connecting terminals approved in accordance with VDE 0620-1 as connectors.
2) No data transfer.
3) Use dust cover 2098 when cleaning the device.
4) Surface painted.
