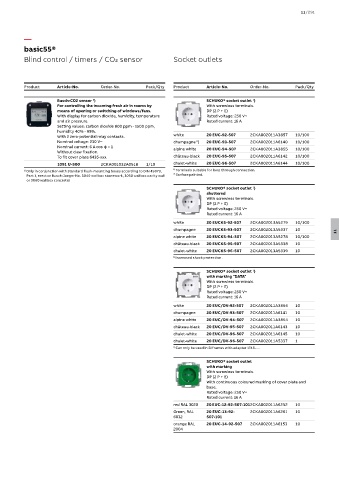

Page 1397 - Din prodcuts 2020

11/291

—
basic55®
Blind control / timers / CO2 sensor Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Busch-CO2 sensor ) SCHUKO® socket outlet )
1
1
For controlling the incoming fresh air in rooms by With screwless terminals.
means of opening or switching of windows/fans. DP (2 P + E)
With display for carbon dioxide, humidity, temperature Rated voltage: 250 V~
and air pressure. Rated current: 16 A
Setting values: carbon dioxide 800 ppm - 1500 ppm,
humidity 40% - 95%.
With 2 zero-potential relay contacts. white 20 EUC-92-507 2CKA002011A3857 10/100
Nominal voltage: 230 V~ champagne ) 20 EUC-93-507 2CKA002011A6140 10/100
2
Nominal current: 6 A cos φ = 1 alpine white 20 EUC-94-507 2CKA002011A3855 10/100
Without claw fixation.
To fit cover plate 6435-xxx. château-black 20 EUC-95-507 2CKA002011A6142 10/100
1091 U-500 2CKA001032A0518 1/10 chalet-white 20 EUC-96-507 2CKA002011A6144 10/100
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073, 1) Terminals suitable for loop through connection.
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall 2) Surface painted.
or 3060 wallbox concrete)
SCHUKO® socket outlet )
1
shuttered
With screwless terminals.
DP (2 P + E)
Rated voltage: 250 V~
Rated current: 16 A
white 20 EUCKS-92-507 2CKA002013A5279 10/100
champagne 20 EUCKS-93-507 2CKA002013A5337 10
11
alpine white 20 EUCKS-94-507 2CKA002013A5278 10/100
château-black 20 EUCKS-95-507 2CKA002013A5338 10
chalet-white 20 EUCKS-96-507 2CKA002013A5339 10
1) Increased shock protection .

SCHUKO® socket outlet )
1
with marking "DATA"
With screwless terminals.
DP (2 P + E)
Rated voltage: 250 V~
Rated current: 16 A
white 20 EUC/DV-92-507 2CKA002011A3856 10
champagne 20 EUC/DV-93-507 2CKA002011A6141 10
alpine white 20 EUC/DV-94-507 2CKA002011A3854 10
château-black 20 EUC/DV-95-507 2CKA002011A6143 10
chalet-white 20 EUC/DV-96-507 2CKA002011A6145 10
chalet-white 20 EUC/DV-96-507 2CKA002011A5337 1
1) Can only be used in SI frames with adapter 1746-....

SCHUKO® socket outlet
with marking
With screwless terminals.
DP (2 P + E)
With continuous coloured marking of cover plate and
base.
Rated voltage: 250 V~
Rated current: 16 A
red RAL 3020 20 EUC-12-92-507-1012CKA002011A6252 10
Green, RAL 20 EUC-13-92- 2CKA002011A6261 10
6032 507-101
orange RAL 20 EUC-14-92-507 2CKA002011A6153 10
2004
