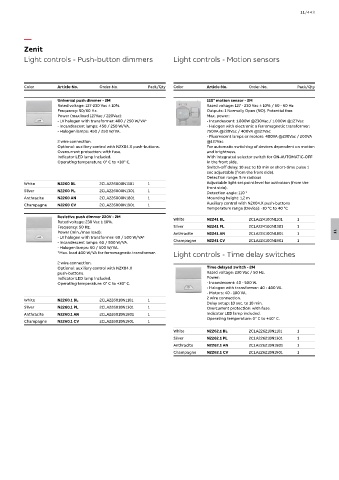

Page 1549 - Din prodcuts 2020

11/443

—
Zenit
Light controls - Push-button dimmers Light controls - Motion sensors

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Universal push dimmer - 2M 110° motion sensor - 2M
Rated voltage: 127-230 Vac ± 10%. Rated voltage: 127 - 230 Vac ± 10% / 50 - 60 Hz
Frequency: 50/60 Hz. Outputs: 1 Normally Open (NO). Potential free
Power (max load 127Vac / 220Vac): Max. power:
- LV halogen with transformer: 400 / 250 W/VA* - Incandescent: 1.800W @230Vac / 1.000W @127Vac
- Incandescent lamps: 450 / 250 W/VA. - Halogen with electronic o ferromagnetic transformer:
- Halogen lamps: 450 / 250 W/VA. 750VA @230Vac / 400VA @127Vac
- Fluorescent lamps or motors: 400VA @230Vac / 200VA
2 wire connection. @127Vac
Optional: auxiliary control with N2X04.X push-buttons. For automatic switching of devices dependent on motion
Overcurrent protection: with fuse. and brightness.
Indicator LED lamp included. With integrated selector switch for ON-AUTOMATIC-OFF
Operating temperature: 0° C to +30° C. in the front side.
Switch-off delay: 10 sec to 10 min or short-time pulse 1
sec adjustable (from the front side).
Detection range: 5 m radious
White N2260 BL 2CLA226000N1101 1 Adjustable light set point level for activation (from the
front side).
Silver N2260 PL 2CLA226000N1301 1 Detection angle: 110 °
Anthracite N2260 AN 2CLA226000N1801 1 Mounting height: 1,2 m
Champagne N2260 CV 2CLA226000N1901 1 Auxiliary control with N2X04.X push-buttons
Temperature range (Device): -10 °C to 40 °C
Resistive push dimmer 220V - 2M
Rated voltage: 230 Vac ± 10%. White N2241 BL 2CLA224100N1101 1
Frequency: 50 Hz. Silver N2241 PL 2CLA224100N1301 1
Power (min./max load): Anthracite N2241 AN 2CLA224100N1801 1 11
- LV halogen with transformer: 60 / 500 W/VA*
- Incandescent lamps: 60 / 500 W/VA. Champagne N2241 CV 2CLA224100N1901 1
- Halogen lamps: 60 / 500 W/VA.
*Max. load 400 W/VA for ferromagnetic transformer. Light controls - Time delay switches
2 wire connection.
Optional: auxiliary control with N2X04.X Time delayed switch - 2M
push-buttons. Rated voltage: 230 Vac / 50 Hz.
Indicator LED lamp included. Power:
Operating temperature: 0° C to +30° C. - Incandescent: 40 - 500 W.
- Halogen with transformer: 40 - 400 VA.
- Motors: 40 - 100 VA.
2 wire connection.
White N2260.1 BL 2CLA226010N1101 1
Delay setup: 10 sec. to 10 min.
Silver N2260.1 PL 2CLA226010N1301 1 Overcurrent protection: with fuse.
Anthracite N2260.1 AN 2CLA226010N1801 1 Indicator LED lamp included.
Operating temperature: 0° C to +40° C.
Champagne N2260.1 CV 2CLA226010N1901 1
White N2262.1 BL 2CLA226210N1101 1
Silver N2262.1 PL 2CLA226210N1301 1
Anthracite N2262.1 AN 2CLA226210N1801 1
Champagne N2262.1 CV 2CLA226210N1901 1
