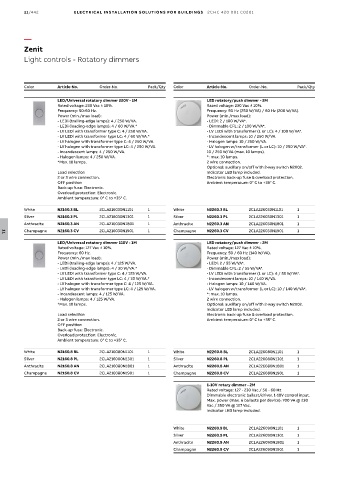

11/442 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit
Light controls - Rotatory dimmers

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

LED/Universal rotatory dimmer 220V - 1M LED rotatory/push dimmer - 2M
Rated voltage: 230 Vac ± 10%. Rated voltage: 230 Vac ± 10%.
Frequency: 50-60 Hz. Frequency: 50 Hz (250 W/VA) / 60 Hz (200 W/VA).
Power (min./max load): Power (min./max load):
- LEDi (trailing-edge lamps): 4 / 250 W/VA. - LEDi: 2 / 100 W/VA*.
- LEDi (leading-edge lamps): 4 / 60 W/VA.* - Dimmable CFL: 2 / 100 W/VA*.
- LV LEDi with transformer type C: 4 / 250 W/VA. - LV LEDi with transformer (L or LC): 4 / 100 W/VA*.
- LV LEDi with transformer type LC: 4 / 60 W/VA.* - Incandescent lamps: 10 / 250 W/VA.
- LV halogen with transformer type C: 4 / 250 W/VA. - Halogen lamps: 10 / 250 W/VA.
- LV halogen with transformer type LC: 4 / 250 W/VA. - LV halogen w/transformer (L or LC): 10 / 250 W/VA*.
- Incandescent lamps: 4 / 250 W/VA. 10 / 250 W/VA (max. 10 lamps).
- Halogen lamps: 4 / 250 W/VA. *: max. 10 lamps.
*Max. 10 lamps. 2 wire connection.
Optional: auxiliary on/off with 2-way switch N2X02.
Load selection Indicator LED lamp included.
2 or 3 wire connection. Electronic back-up fuse & overload protection.
OFF position Ambient temperature: 0° C to +35° C.
Back-up fuse: Electronic.
Overload protection: Electronic.
Ambient temperature: 0° C to +35° C.
White N2160.3 BL 2CLA216030N1101 1 White N2260.3 BL 2CLA226030N1101 1
Silver N2160.3 PL 2CLA216030N1301 1 Silver N2260.3 PL 2CLA226030N1301 1
Anthracite N2160.3 AN 2CLA216030N1801 1 Anthracite N2260.3 AN 2CLA226030N1801 1
Champagne N2160.3 CV 2CLA216030N1901 1 Champagne N2260.3 CV 2CLA226030N1901 1
11
LED/Universal rotatory dimmer 110V - 1M LED rotatory/push dimmer - 2M
Rated voltage: 127 Vac ± 10%. Rated voltage: 127 Vac ± 10%.
Frequency: 60 Hz. Frequency: 50 / 60 Hz (140 W/VA).
Power (min./max load): Power (min./max load):
- LEDi (trailing-edge lamps): 4 / 125 W/VA. - LEDi: 2 / 55 W/VA*.
- LEDi (leading-edge lamps): 4 / 30 W/VA.* - Dimmable CFL: 2 / 55 W/VA*.
- LV LEDi with transformer type C: 4 / 125 W/VA. - LV LEDi with transformer (L or LC): 4 / 55 W/VA*.
- LV LEDi with transformer type LC: 4 / 30 W/VA.* - Incandescent lamps: 10 / 140 W/VA.
- LV halogen with transformer type C: 4 / 125 W/VA. - Halogen lamps: 10 / 140 W/VA.
- LV halogen with transformer type LC: 4 / 125 W/VA. - LV halogen w/transformer (L or LC): 10 / 140 W/VA*.
- Incandescent lamps: 4 / 125 W/VA. *: max. 10 lamps.
- Halogen lamps: 4 / 125 W/VA. 2 wire connection.
*Max. 10 lamps. Optional: auxiliary on/off with 2-way switch N2X02.
Indicator LED lamp included.
Load selection Electronic back-up fuse & overload protection.
2 or 3 wire connection. Ambient temperature: 0° C to +35° C.
OFF position
Back-up fuse: Electronic.
Overload protection: Electronic.
Ambient temperature: 0° C to +35° C.

White N2160.8 BL 2CLA216080N1101 1 White N2260.8 BL 2CLA226080N1101 1
Silver N2160.8 PL 2CLA216080N1301 1 Silver N2260.8 PL 2CLA226080N1301 1
Anthracite N2160.8 AN 2CLA216080N1801 1 Anthracite N2260.8 AN 2CLA226080N1801 1
Champagne N2160.8 CV 2CLA216080N1901 1 Champagne N2260.8 CV 2CLA226080N1901 1

1-10V rotary dimmer - 2M
Rated voltage: 127 - 230 Vac / 50 - 60 Hz
Dimmable electronic ballast/driver. 1-10V control input.
Max. power (max. 6 ballasts per device): 700 VA @ 230
Vac / 350 VA @ 127 Vac.
Indicator LED lamp included.

White N2260.9 BL 2CLA226090N1101 1
Silver N2260.9 PL 2CLA226090N1301 1
Anthracite N2260.9 AN 2CLA226090N1801 1
Champagne N2260.9 CV 2CLA226090N1901 1
