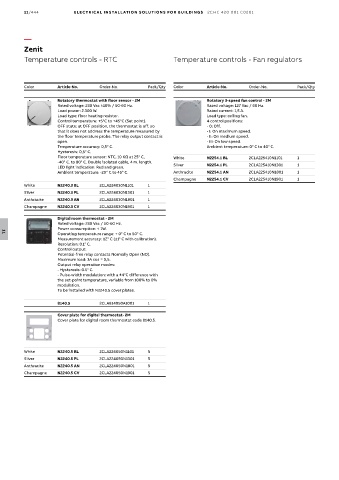

11/444 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit
Temperature controls - RTC Temperature controls - Fan regulators

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Rotatory thermostat with floor sensor - 2M Rotatory 3-speed fan control - 2M
Rated voltage: 230 Vac ±10% / 50-60 Hz. Rated voltage: 127 Vac / 60 Hz.
Load power: 2.300 W. Rated current: 1,5 A.
Load type: floor heating resistor. Load type: ceiling fan.
Control temperature: +5°C to +45°C (Set point). 4 control positions:
OFF state: at OFF position, the thermostat is off, so - 0: Off.
that it does not address the temperature measured by - I: On maximum speed.
the floor temperature probe. The relay output contact is - II: On medium speed.
open. - III: On low speed.
Temperature accuracy: 0,5° C. Ambient temperature: 0° C to 40° C.
Hysteresis: 0,5° C.
Floor temperature sensor: NTC, 10 KΩ at 25° C, White N2254.1 BL 2CLA225410N1101 1
-40° C. to 80° C. Double isolated cable, 4 m. length.
LED light indication: Red and green. Silver N2254.1 PL 2CLA225410N1301 1
Ambient temperature: -20° C to 45° C. Anthracite N2254.1 AN 2CLA225410N1801 1
Champagne N2254.1 CV 2CLA225410N1901 1
White N2240.3 BL 2CLA224030N1101 1
Silver N2240.3 PL 2CLA224030N1301 1
Anthracite N2240.3 AN 2CLA224030N1801 1
Champagne N2240.3 CV 2CLA224030N1901 1
Digital room thermostat - 2M
Rated voltage: 230 Vac / 50-60 Hz.
Power consumption: < 1W.
Operating temperature range: + 0° C to 50° C.
11
Measurement accuracy: ±2° C (±1° C with calibration).
Resolution: 0.1° C.
Control output:
Potential-free relay contacts Normally Open (NO).
Maximum load: 3A cos = 0,5.
Output relay operation modes:
- Hysteresis: 0.5° C.
- Pulse-width modulation: with a ±4°C difference with
the set-point temperature, variable from 100% to 0%
modulation.
To be installed with N2240.5 cover plates.

8140.5 2CLA814050A1001 1
Cover plate for digital thermostat- 2M
Cover plate for digital room thermostat code 8140.5.

White N2240.5 BL 2CLA224050N1101 5
Silver N2240.5 PL 2CLA224050N1301 5
Anthracite N2240.5 AN 2CLA224050N1801 5
Champagne N2240.5 CV 2CLA224050N1901 5
