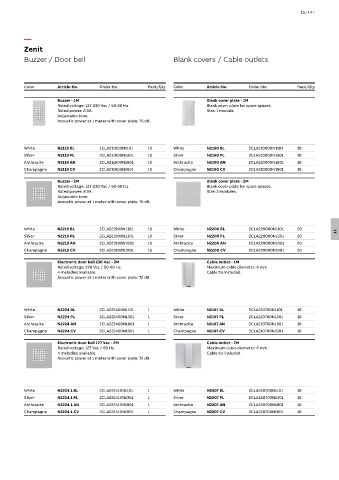

Page 1553 - Din prodcuts 2020

11/447

—
Zenit
Buzzer / Door bell Blank covers / Cable outlets

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Buzzer - 1M Blank cover plate - 1M
Rated voltage: 127-230 Vac / 50-60 Hz. Blank cover plate for spare spaces.
Rated power: 8 VA. Size: 1 module.
Adjustable tone.
Acoustic power at 1 meter with cover plate: 75 dB.

White N2119 BL 2CLA211900N1101 10 White N2100 BL 2CLA210000N1101 10
Silver N2119 PL 2CLA211900N1301 10 Silver N2100 PL 2CLA210000N1301 10
Anthracite N2119 AN 2CLA211900N1801 10 Anthracite N2100 AN 2CLA210000N1801 10
Champagne N2119 CV 2CLA211900N1901 10 Champagne N2100 CV 2CLA210000N1901 10
Buzzer - 2M Blank cover plate - 2M
Rated voltage: 127-230 Vac / 50-60 Hz. Blank cover plate for spare spaces.
Rated power: 8 VA. Size: 2 modules.
Adjustable tone.
Acoustic power at 1 meter with cover plate: 75 dB.

White N2219 BL 2CLA221900N1101 10 White N2200 BL 2CLA220000N1101 20 11
Silver N2219 PL 2CLA221900N1301 10 Silver N2200 PL 2CLA220000N1301 20
Anthracite N2219 AN 2CLA221900N1801 10 Anthracite N2200 AN 2CLA220000N1801 20
Champagne N2219 CV 2CLA221900N1901 10 Champagne N2200 CV 2CLA220000N1901 20

Electronic door bell 230 Vac - 2M Cable outlet - 1M
Rated voltage: 230 Vac / 50-60 Hz. Maximum cable diameter: 6 mm.
4 melodies available. Cable tie included.
Acoustic power at 1 meter with cover plate: 72 dB.

White N2224 BL 2CLA222400N1101 1 White N2107 BL 2CLA210700N1101 10
Silver N2224 PL 2CLA222400N1301 1 Silver N2107 PL 2CLA210700N1301 10
Anthracite N2224 AN 2CLA222400N1801 1 Anthracite N2107 AN 2CLA210700N1801 10
Champagne N2224 CV 2CLA222400N1901 1 Champagne N2107 CV 2CLA210700N1901 10

Electronic door bell 127 Vac - 2M Cable outlet - 2M
Rated voltage: 127 Vac / 60 Hz. Maximum cable diameter: 6 mm.
4 melodies available. Cable tie included.
Acoustic power at 1 meter with cover plate: 72 dB.

White N2224.1 BL 2CLA222410N1101 1 White N2207 BL 2CLA220700N1101 10
Silver N2224.1 PL 2CLA222410N1301 1 Silver N2207 PL 2CLA220700N1301 10
Anthracite N2224.1 AN 2CLA222410N1801 1 Anthracite N2207 AN 2CLA220700N1801 10
Champagne N2224.1 CV 2CLA222410N1901 1 Champagne N2207 CV 2CLA220700N1901 10
