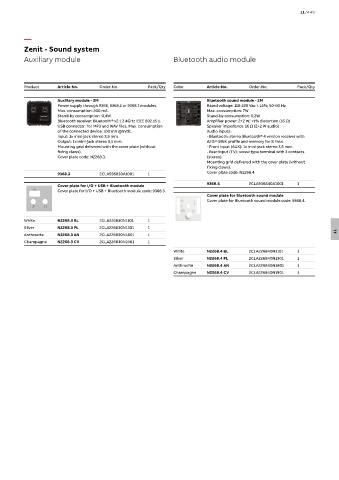

Page 1555 - Din prodcuts 2020

11/449

—
Zenit - Sound system
Auxiliary module Bluetooth audio module

Product Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Auxiliary module - 2M Bluetooth sound module - 2M
Power supply through 9368, 9368.2 or 9368.7 modules. Rated voltage: 110-230 Vac ± 15%; 50-60 Hz
Max. consumption: 200 mA. Max. consumption: 7W
Stand-by consumption: 0,4W. Stand-by consumption: 0,2W
Bluetooth receiver: Bluetooth® v2.1 2.4GHz IEEE 802.15.1. Amplifier power: 2+2 W; <1% distortion (16 Ω)
USB connector: for MP3 and WAV files. Max. consumption Speaker impedance: 16 Ω (2+2 W audio)
of the connected device: 100 mA @5Vdc. Audio inputs:
Input: 1x mini-jack stereo 3,5 mm. - Bluetooth: stereo Bluetooth® 4 version receiver with
Output: 1x mini-jack stereo 3,5 mm. A2DP-SINK profile and memory for 8 links.
Mounting grid delivered with the cover plate (without - Front input (AUX): 1x mini-jack stereo 3,5 mm.
fixing claws). - Rear input (TV): screw type terminal with 3 contacts
Cover plate code: N2268.3. (stereo).
Mounting grid delivered with the cover plate (without
fixing claws).
9368.3 2CLA936830A1001 1 Cover plate code: N2268.4
Cover plate for I/O + USB + Bluetooth module 9368.4 2CLA936840A1001 1
Cover plate for I/O + USB + Bluetooth module code: 9368.3.
Cover plate for Bluetooth sound module
Cover plate for Bluetooth sound module code: 9368.4.

White N2268.3 BL 2CLA226830N1101 1
Silver N2268.3 PL 2CLA226830N1301 1
Anthracite N2268.3 AN 2CLA226830N1801 1 11
Champagne N2268.3 CV 2CLA226830N1901 1
White N2268.4 BL 2CLA226840N1101 1
Silver N2268.4 PL 2CLA226840N1301 1
Anthracite N2268.4 AN 2CLA226840N1801 1
Champagne N2268.4 CV 2CLA226840N1901 1
