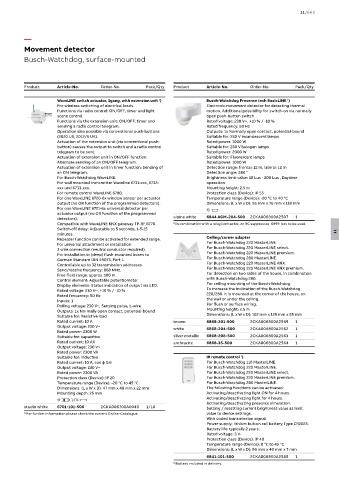

Page 1769 - Din prodcuts 2020

11/663

—
Movement detector
Busch-Watchdog, surface-mounted

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

WaveLINE switch actuator, 1gang, with extension unit ) Busch-Watchdog Presence tech BasicLINE ) 1
1
For wireless switching of electrical loads. Electronic movement detector for detecting thermal
Functions via radio control: ON/OFF, timer and light motion. Additional possibility for switch-on via normally
scene control. open push-button switch.
Functions via the extension unit: ON/OFF, timer and Rated voltage: 230 V~, +10 % / -10 %
sending a radio control telegram. Rated frequency: 50 Hz
Operation also possible via conventional push-buttons Outputs: 1x Normally open contact, potential-bound
(2020 US, 2012/6 UK). Suitable for: 230 V incandescent lamps
Actuation of the extension unit (via conventional push- Rated power: 1000 W
button) causes the output to switch and a radio control Suitable for: 230 V halogen lamps
telegram to be sent. Rated power: 2000 W
Actuation of extension unit in ON/OFF function: Suitable for: Fluorescent lamps
Alternate sending of an ON/OFF telegram. Rated power: 1000 W
Actuation of extension unit in timer function: Sending of Detection range: frontal: 12 m, lateral: 12 m
an ON telegram. Detection angle: 240 °
For Busch-Watchdog WaveLINE. Brightness limit value: 10 Lux - 200 Lux , Daytime
For wall mounted transmitter Waveline 6731-xxx, 6732- operation
xxx und 6733-xxx. Mounting height: 2.5 m
For remote control WaveLINE 6780. Protection class (Device): IP 55
For one WaveLINE 6720-6x window sensor per actuator Temperature range (Device): -20 °C to 40 °C
output (no OR function of the programmed detectors). Dimensions: (L x W x D): 95 mm x 76 mm x 118 mm
For one WaveLINE 6721-6x universal detector per
actuator output (no OR function of the programmed
detectors). alpine white 6844 AGM-204-500 2CKA006800A2507 1
Compatible with WaveLINE KNX gateway TP-RF 6770. 1) In combination with a relay/contactor, an RC suppressor 6899 has to be used.
Switch-off delay: Adjustable to 5 seconds, 1-5-15
minutes. 11
Repeater function can be activated for extended range. Ceiling/corner adapter
For universal attachment or installation. For Busch-Watchdog 220 MasterLINE.
3 wire connection (neutral conductor required). For Busch-Watchdog 220 MasterLINE select.
For installation in (deep) flush-mounted boxes to For Busch-Watchdog 220 MasterLINE premium.
German Standard DIN 49073, Part 1. For Busch-Watchdog 280 MasterLINE.
Controllable up to 32 transmission addresses. For Busch-Watchdog 220 MasterLINE KNX.
Send/receive frequency: 868 MHz. For Busch-Watchdog 220 MasterLINE KNX premium.
Free-field range: approx. 100 m. For detection on two sides of the house, in combination
Control element: Adjustable potentiometer with Busch-Watchdog 280.
Display elements: Status indication of output via LED. For ceiling mounting of the Busch-Watchdog.
Rated voltage: 230 V~, +10 % / -10 % To increase the inclination of the Busch-Watchdog
Rated frequency: 50 Hz 220/280. It is mounted at the corner of the house, on
Inputs: 1 the wall or under the ceiling.
Polling voltage: 230 V~, Sensing pulse, L-wire For flush or surface wiring.
Outputs: 1x Normally open contact, potential-bound Mounting height: 2.5 m
Suitable for: Resistive load Dimensions: (L x W x D): 102 mm x 125 mm x 55 mm
Rated current: 10 A brown 6868-201-500 2CKA006800A2565 1
Output voltage: 230 V~ white 6868-204-500 2CKA006800A2562 1
Rated power: 2300 W
Suitable for: capacitive silver metallic 6868-208-500 2CKA006800A2563 1
Rated current: 10 AX anthracite 6868-35-500 2CKA006800A2564 1
Output voltage: 230 V~
Rated power: 2300 VA
1
Suitable for: inductive IR remote control )
Rated current: 10 A, cos φ 0.6 For Busch-Watchdog 110 MasterLINE.
Output voltage: 230 V~ For Busch-Watchdog 220 MasterLINE.
Rated power: 2300 VA For Busch-Watchdog 220 MasterLINE select.
Protection class (Device): IP 20 For Busch-Watchdog 220 MasterLINE premium.
Temperature range (Device): -20 °C to 45 °C For Busch-Watchdog 280 MasterLINE.
Dimensions: (L x W x D): 47 mm x 48 mm x 22 mm The following functions can be activated:
Mounting depth: 25 mm Activating/deactivating light ON for 4 hours.
Activating/deactivating light for 4 hours.

Activating/deactivating presence simulation.
studio white 6701-101-500 2CKA006700A0040 1/10 Setting / resetting current brightness value as limit
1) For further information please check the current Online-Catalogue. value to device settings.
With coded transmission signal.
Power supply: lithium button cell battery Type CR2025.
Battery life: typically 2 years.
Rated voltage: 3 V-
Protection class (Device): IP 40
Temperature range (Device): 0 °C to 45 °C
Dimensions: (L x W x D): 86 mm x 40 mm x 7 mm
6841-101-500 2CKA006800A2585 1
1) Battery included in delivery.
