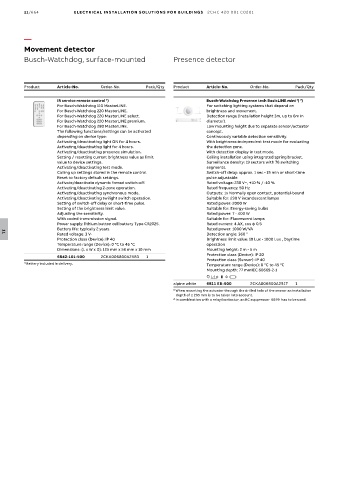

11/664 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Movement detector
Busch-Watchdog, surface-mounted Presence detector

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

IR service remote control ) 1 Busch-Watchdog Presence tech BasicLINE mini ) )
1
2
For Busch-Watchdog 110 MasterLINE. For switching lighting systems that depend on
For Busch-Watchdog 220 MasterLINE. brightness and movement.
For Busch-Watchdog 220 MasterLINE select. Detection range (installation height 3m, up to 6m in
For Busch-Watchdog 220 MasterLINE premium. diameter).
For Busch-Watchdog 280 MasterLINE. Low mounting height due to separate sensor/actuator
The following functions/settings can be activated concept.
depending on device type: Continuously variable detection sensitivity.
Activating/deactivating light ON for 4 hours. With brightness-independent test mode for evaluating
Activating/deactivating light for 4 hours. the detection zone.
Activating/deactivating presence simulation. With detection display in test mode.
Setting / resetting current brightness value as limit Ceiling installation using integrated spring bracket.
value to device settings. Surveillance density: 19 sectors with 76 switching
Activating/deactivating test mode. segments.
Calling up settings stored in the remote control. Switch-off delay: approx. 1 sec - 15 min or short-time
Reset to factory default settings. pulse adjustable.
Activate/deactivate dynamic forced switch-off. Rated voltage: 230 V~, +10 % / -10 %
Activating/deactivating 2-zone operation. Rated frequency: 50 Hz
Activating/deactivating synchronous mode. Outputs: 1x Normally open contact, potential-bound
Activating/deactivating twilight switch operation. Suitable for: 230 V incandescent lamps
Setting of switch-off delay or short-time pulse. Rated power: 2000 W
Setting of the brightness limit value. Suitable for: Energy-saving bulbs
Adjusting the sensitivity. Rated power: 7 - 400 W
With coded transmission signal. Suitable for: Fluorescent lamps
Power supply: lithium button cell battery Type CR2025. Rated current: 4 AX, cos φ 0.5
Battery life: typically 2 years. Rated power: 1000 W/VA
Rated voltage: 3 V- Detection angle: 360 °
11
Protection class (Device): IP 40 Brightness limit value: 10 Lux - 1000 Lux , Daytime
Temperature range (Device): 0 °C to 45 °C operation
Dimensions: (L x W x D): 125 mm x 56 mm x 10 mm Mounting height: 2 m - 5 m
Protection class (Device): IP 20
6842-101-500 2CKA006800A2583 1
Protection class (Sensor): IP 40
1) Battery included in delivery.
Temperature range (Device): 0 °C to 45 °C
Mounting depth: 77 mmIEC 60669-2-1

alpine white 6811 EB-500 2CKA006800A2517 1
1) When mounting the actuator through the drilled hole of the sensor an installation
depth of ≥ 205 mm is to be taken into account.
2) In combination with a relay/contactor, an RC suppressor 6899 has to be used.
