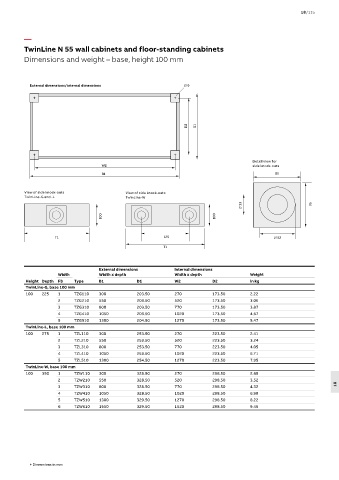

TwinLine N 55 wall cabinets and floor-standing cabinets
Dimensions and weight – base, height 100 mm
External dimensions/internal dimensions 9
D2 D1
Detail view for
W2 side knock-outs
B1 81
View of side knock-outs View of side knock-outs
TwinLine-G and -L TwinLine-W
33 79
100 100
T1 125 52
T1
External dimensions Internal dimensions
Width Width x depth Width x depth Weight
Height Depth FB Type B1 D1 W2 D2 in kg
TwinLine-G, base 100 mm
100 225 1 TZG110 300 203.50 270 173.50 2.22
2 TZG210 550 203.50 520 173.50 3.06
3 TZG310 800 203.50 770 173.50 3.87
4 TZG410 1050 203.50 1020 173.50 4.67
5 TZG510 1300 204.50 1270 173.50 5.47
TwinLine-L, base 100 mm
100 275 1 TZL110 300 253.50 270 223.50 2.41
2 TZL210 550 253.50 520 223.50 3.24
3 TZL310 800 253.50 770 223.50 4.05
4 TZL410 1050 253.50 1020 223.50 6.71
5 TZL510 1300 254.50 1270 223.50 7.95
TwinLine-W, base 100 mm
100 350 1 TZW110 300 328.50 270 298.50 2.68
2 TZW210 550 328.50 520 298.50 3.52
3 TZW310 800 328.50 770 298.50 4.32 18
4 TZW410 1050 328.50 1020 298.50 6.98
5 TZW510 1300 329.50 1270 298.50 8.22
6 TZW610 1550 329.50 1520 298.50 9.45
> Dimensions in mm
