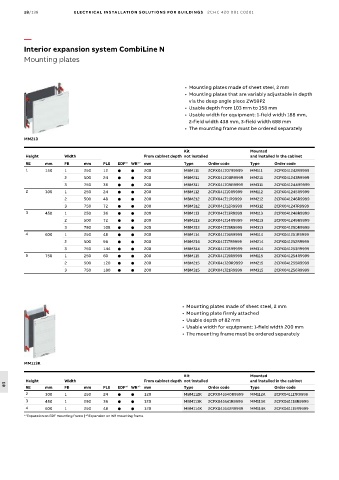

Page 2466 - Din prodcuts 2020

18/138 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Mounting plates

• Mounting plates made of sheet steel, 2 mm
• Mounting plates that are variably adjustable in depth
via the deep angle piece ZW59P2
• Usable depth from 103 mm to 158 mm
• Usable width for equipment: 1-field width 188 mm,
2-field width 438 mm, 3-field width 688 mm
• The mounting frame must be ordered separately
MM213
Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
1 150 1 250 12   200 MBM111 2CPX041707R9999 MM111 2CPX041242R9999
2 500 24   200 MBM211 2CPX041708R9999 MM211 2CPX041243R9999
3 750 36   200 MBM311 2CPX041709R9999 MM311 2CPX041244R9999
2 300 1 250 24   200 MBM112 2CPX041710R9999 MM112 2CPX041245R9999
2 500 48   200 MBM212 2CPX041711R9999 MM212 2CPX041246R9999
3 750 72   200 MBM312 2CPX041712R9999 MM312 2CPX041247R9999
3 450 1 250 36   200 MBM113 2CPX041713R9999 MM113 2CPX041248R9999
2 500 72   200 MBM213 2CPX041714R9999 MM213 2CPX041249R9999
3 750 108   200 MBM313 2CPX041715R9999 MM313 2CPX041250R9999
4 600 1 250 48   200 MBM114 2CPX041716R9999 MM114 2CPX041251R9999
2 500 96   200 MBM214 2CPX041717R9999 MM214 2CPX041252R9999
3 750 144   200 MBM314 2CPX041718R9999 MM314 2CPX041253R9999
5 750 1 250 60   200 MBM115 2CPX041719R9999 MM115 2CPX041254R9999
2 500 120   200 MBM215 2CPX041720R9999 MM215 2CPX041255R9999
3 750 180   200 MBM315 2CPX041721R9999 MM315 2CPX041256R9999

• Mounting plates made of sheet steel, 2 mm
• Mounting plate firmly attached
• Usable depth of 82 mm
• Usable width for equipment: 1-field width 200 mm
• The mounting frame must be ordered separately

MM113K

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
1
RE mm FB mm PLE EDF* WR* 2 mm Type Order code Type Order code
18
2 300 1 250 24   120 MBM112K 2CPX041640R9999 MM112K 2CPX041117R9999
3 450 1 250 36   120 MBM113K 2CPX041641R9999 MM113K 2CPX041118R9999
4 600 1 250 48   120 MBM114K 2CPX041642R9999 MM114K 2CPX041119R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
