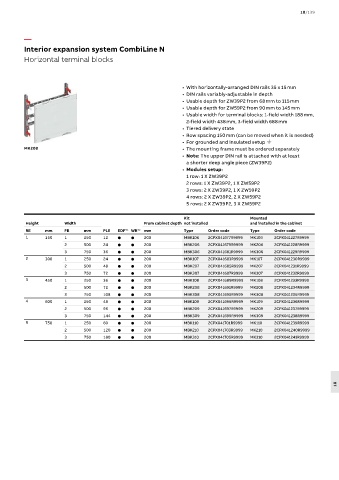

Interior expansion system CombiLine N
Horizontal terminal blocks

• With horizontally-arranged DIN rails 35 x 15 mm
• DIN rails variably-adjustable in depth
• Usable depth for ZW39P2 from 68 mm to 115 mm
• Usable depth for ZW59P2 from 90 mm to 145 mm
• Usable width for terminal blocks: 1-field width 188 mm,
2-field width 438 mm, 3-field width 688 mm
• Tiered delivery state
• Row spacing 150 mm (can be moved when it is needed)
• For grounded and insulated setup .
MK208 • The mounting frame must be ordered separately
• Note: The upper DIN rail is attached with at least
a shorter deep angle piece (ZW39P2)
• Modules setup:
1 row: 1 X ZW39P2
2 rows: 1 X ZW39P2, 1 X ZW59P2
3 rows: 2 X ZW39P2, 1 X ZW59P2
4 rows: 2 X ZW39P2, 2 X ZW59P2
5 rows: 2 X ZW39P2, 3 X ZW59P2

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
1 150 1 250 12   200 MBK106 2CPX041677R9999 MK106 2CPX041227R9999
2 500 24   200 MBK206 2CPX041679R9999 MK206 2CPX041228R9999
3 750 36   200 MBK306 2CPX041681R9999 MK306 2CPX041229R9999
2 300 1 250 24   200 MBK107 2CPX041683R9999 MK107 2CPX041230R9999
2 500 48   200 MBK207 2CPX041685R9999 MK207 2CPX041231R9999
3 750 72   200 MBK307 2CPX041687R9999 MK307 2CPX041232R9999
3 450 1 250 36   200 MBK108 2CPX041689R9999 MK108 2CPX041233R9999
2 500 72   200 MBK208 2CPX041691R9999 MK208 2CPX041234R9999
3 750 108   200 MBK308 2CPX041693R9999 MK308 2CPX041235R9999
4 600 1 250 48   200 MBK109 2CPX041695R9999 MK109 2CPX041236R9999
2 500 96   200 MBK209 2CPX041697R9999 MK209 2CPX041237R9999
3 750 144   200 MBK309 2CPX041699R9999 MK309 2CPX041238R9999
5 750 1 250 60   200 MBK110 2CPX041701R9999 MK110 2CPX041239R9999
2 500 120   200 MBK210 2CPX041703R9999 MK210 2CPX041240R9999
3 750 180   200 MBK310 2CPX041705R9999 MK310 2CPX041241R9999
