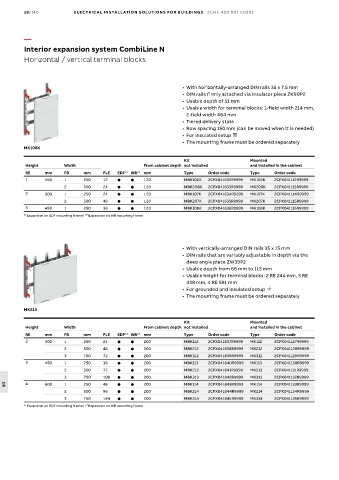

18/140 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Horizontal / vertical terminal blocks

• With horizontally-arranged DIN rails 35 x 7.5 mm
• DIN rails firmly attached via insulator piece ZK90P2
• Usable depth of 51 mm
• Usable width for terminal blocks: 1-field width 214 mm,
2-field width 464 mm
• Tiered delivery state
• Row spacing 150 mm (can be moved when it is needed)
• For insulated setup ,
• The mounting frame must be ordered separately
MK108K

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
1
RE mm FB mm PLE EDF* WR* 2 mm Type Order code Type Order code
1 150 1 250 12   120 MBK106K 2CPX041632R9999 MK106K 2CPX041112R9999
2 500 24   120 MBK206K 2CPX041633R9999 MK206K 2CPX041113R9999
2 300 1 250 24   120 MBK107K 2CPX041634R9999 MK107K 2CPX041114R9999
2 500 48   120 MBK207K 2CPX041635R9999 MK207K 2CPX041115R9999
3 450 1 250 36   120 MBK108K 2CPX041636R9999 MK108K 2CPX041116R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• With vertically-arranged DIN rails 35 x 15 mm
• DIN rails that are variably adjustable in depth via the
deep angle piece ZW39P2
• Usable depth from 66 mm to 113 mm
• Usable height for terminal blocks: 2 RE 244 mm, 3 RE
438 mm, 4 RE 591 mm
• For grounded and insulated setup .
• The mounting frame must be ordered separately

MK213

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 24   200 MBK112 2CPX041837R9999 MK112 2CPX041127R9999
2 500 48   200 MBK212 2CPX041838R9999 MK212 2CPX041128R9999
3 750 72   200 MBK312 2CPX041839R9999 MK312 2CPX041129R9999
3 450 1 250 36   200 MBK113 2CPX041840R9999 MK113 2CPX041130R9999
2 500 72   200 MBK213 2CPX041841R9999 MK213 2CPX041131R9999
3 750 108   200 MBK313 2CPX041842R9999 MK313 2CPX041132R9999
4 600 1 250 48   200 MBK114 2CPX041843R9999 MK114 2CPX041133R9999
18
2 500 96   200 MBK214 2CPX041844R9999 MK214 2CPX041134R9999
3 750 144   200 MBK314 2CPX041845R9999 MK314 2CPX041135R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
