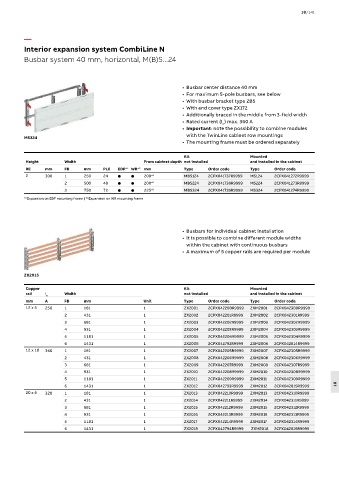

Interior expansion system CombiLine N
Busbar system 40 mm, horizontal, M(B)S...24

• Busbar center distance 40 mm
• For maximum 5-pole busbars, see below
• With busbar bracket type ZB5
• With end cover type ZX172
• Additionally braced in the middle from 3-field width
• Rated current (I ) max. 360 A
n
• Important: note the possibility to combine modules
with the TwinLine cabinet row mountings
MS324
• The mounting frame must be ordered separately

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 24   200* 1 MBS124 2CPX041737R9999 MS124 2CPX041272R9999
2 500 48   200* 1 MBS224 2CPX041738R9999 MS224 2CPX041273R9999
3 750 72   225* 1 MBS324 2CPX041739R9999 MS324 2CPX041274R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Busbars for individual cabinet installation
• It is possible to combine different module widths
within the cabinet with continuous busbars
• A maximum of 5 copper rails are required per module

ZX2015

Copper Kit Mounted
rail I Width not installed and installed in the cabinet
n
mm A FB mm Unit Type Order code Type Order code
12 x 5 250 1 181 1 ZX2001 2CPX042200R9999 ZXM2001 2CPX042300R9999
2 431 1 ZX2002 2CPX042201R9999 ZXM2002 2CPX042301R9999
3 681 1 ZX2003 2CPX042202R9999 ZXM2003 2CPX042302R9999
4 931 1 ZX2004 2CPX042203R9999 ZXM2004 2CPX042303R9999
5 1181 1 ZX2005 2CPX042204R9999 ZXM2005 2CPX042304R9999
6 1431 1 ZX2006 2CPX042792R9999 ZXM2006 2CPX042814R9999
12 x 10 360 1 181 1 ZX2007 2CPX042205R9999 ZXM2007 2CPX042305R9999
2 431 1 ZX2008 2CPX042206R9999 ZXM2008 2CPX042306R9999
3 681 1 ZX2009 2CPX042207R9999 ZXM2009 2CPX042307R9999
4 931 1 ZX2010 2CPX042208R9999 ZXM2010 2CPX042308R9999
5 1181 1 ZX2011 2CPX042209R9999 ZXM2011 2CPX042309R9999
6 1431 1 ZX2012 2CPX042793R9999 ZXM2012 2CPX042815R9999 18
20 x 5 320 1 181 1 ZX2013 2CPX042210R9999 ZXM2013 2CPX042310R9999
2 431 1 ZX2014 2CPX042211R9999 ZXM2014 2CPX042311R9999
3 681 1 ZX2015 2CPX042212R9999 ZXM2015 2CPX042312R9999
4 931 1 ZX2016 2CPX042213R9999 ZXM2016 2CPX042313R9999
5 1181 1 ZX2017 2CPX042214R9999 ZXM2017 2CPX042314R9999
6 1431 1 ZX2018 2CPX042794R9999 ZXM2018 2CPX042816R9999
