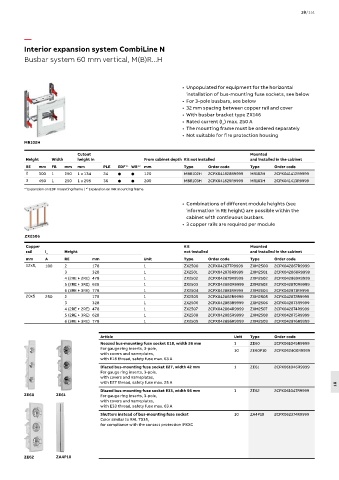

18/151

—
Interior expansion system CombiLine N
Busbar system 60 mm vertical, M(B)R...H

• Unpopulated for equipment for the horizontal
installation of bus-mounting fuse sockets, see below
• For 3-pole busbars, see below
• 32 mm spacing between copper rail and cover
• With busbar bracket type ZX146
• Rated current (I ) max. 250 A
n
• The mounting frame must be ordered separately
• Not suitable for fire protection housing
MR102H
Cutout Mounted
Height Width height in From cabinet depth Kit not installed and installed in the cabinet
RE mm FB mm mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 1 x 134 24   120 MBR102H 2CPX041828R9999 MR102H 2CPX041412R9999
3 450 1 250 1 x 295 36   200 MBR103H 2CPX041829R9999 MR103H 2CPX041413R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Combinations of different module heights (see
information in RE height) are possible within the
cabinet with continuous busbars.
• 3 copper rails are required per module

ZX2506

Copper Kit Mounted
rail I n Height not installed and installed in the cabinet
mm A RE mm Unit Type Order code Type Order code
12x5, 100 2 178 1 ZX2500 2CPX042877R9999 ZXM2500 2CPX042867R9999
3 328 1 ZX2501 2CPX042878R9999 ZXM2501 2CPX042868R9999
4 (2RE + 2RE) 478 1 ZX2502 2CPX042879R9999 ZXM2502 2CPX042869R9999
5 (2RE + 3RE) 628 1 ZX2503 2CPX042880R9999 ZXM2503 2CPX042870R9999
6 (3RE + 3RE) 778 1 ZX2504 2CPX042881R9999 ZXM2504 2CPX042871R9999
20x5 250 2 178 1 ZX2505 2CPX042882R9999 ZXM2505 2CPX042872R9999
3 328 1 ZX2506 2CPX042883R9999 ZXM2506 2CPX042873R9999
4 (2RE + 2RE) 478 1 ZX2507 2CPX042884R9999 ZXM2507 2CPX042874R9999
5 (2RE + 3RE) 628 1 ZX2508 2CPX042885R9999 ZXM2508 2CPX042875R9999
6 (3RE + 3RE) 778 1 ZX2509 2CPX042886R9999 ZXM2509 2CPX042876R9999

Article Unit Type Order code
Neozed bus-mounting fuse socket E18, width 26 mm 1 ZE60 2CPX061045R9999
For gauge ring inserts, 3-pole, 10 ZE60P10 2CPX062400R9999
with covers and nameplates,
with E18 thread, safety fuse max. 63 A
Diazed bus-mounting fuse socket E27, width 42 mm 1 ZE61 2CPX061046R9999
For gauge ring inserts, 3-pole,
with covers and nameplates,
with E27 thread, safety fuse max. 25 A
18
Diazed bus-mounting fuse socket E33, width 56 mm 1 ZE62 2CPX061047R9999
ZE60 ZE61 For gauge ring inserts, 3-pole,
with covers and nameplates,
with E33 thread, safety fuse max. 63 A
Shutters instead of bus-mounting fuse socket 10 ZA4P10 2CPX062374R9999
Color similar to RAL 7035,
for compliance with the contact protection IPXXC

ZE62 ZA4P10
