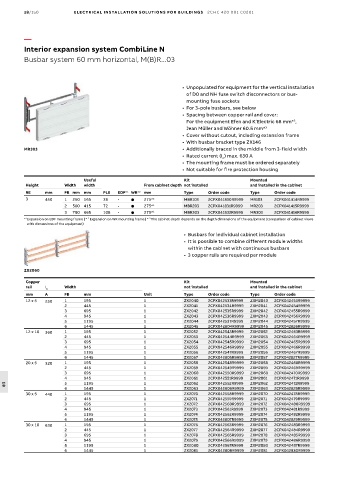

18/150 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Busbar system 60 mm horizontal, M(B)R...03

• Unpopulated for equipment for the vertical installation
of D0 and NH fuse switch disconnectors or bus-
mounting fuse sockets
• For 3-pole busbars, see below
• Spacing between copper rail and cover:
For the equipment Efen and K‘Electric 68 mm* ,
3
Jean Müller and Wöhner 60.5 mm* 3
• Cover without cutout, including extension frame
• With busbar bracket type ZX146
MR303 • Additionally braced in the middle from 3-field width
• Rated current (I ) max. 630 A
n
• The mounting frame must be ordered separately
• Not suitable for fire protection housing
Useful Kit Mounted
Height Width width From cabinet depth not installed and installed in the cabinet
RE mm FB mm mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
3 450 1 250 165 36 -  275* 3 MBR103 2CPX041830R9999 MR103 2CPX041414R9999
2 500 415 72 -  275* 3 MBR203 2CPX041831R9999 MR203 2CPX041415R9999
3 750 665 108 -  275* 3 MBR303 2CPX041832R9999 MR303 2CPX041416R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame | * 3 The cabinet depth depends on the depth dimensions of the equipment (comparison of cabinet views
with dimensions of the equipment)
• Busbars for individual cabinet installation
• It is possible to combine different module widths
within the cabinet with continuous busbars
• 3 copper rails are required per module

ZX2060
Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
12 x 5 250 1 195 1 ZX2040 2CPX042533R9999 ZXM2040 2CPX042453R9999
2 445 1 ZX2041 2CPX042534R9999 ZXM2041 2CPX042454R9999
3 695 1 ZX2042 2CPX042535R9999 ZXM2042 2CPX042455R9999
4 945 1 ZX2043 2CPX042536R9999 ZXM2043 2CPX042456R9999
5 1195 1 ZX2044 2CPX042537R9999 ZXM2044 2CPX042457R9999
6 1445 1 ZX2045 2CPX042804R9999 ZXM2045 2CPX042826R9999
12 x 10 360 1 195 1 ZX2052 2CPX042543R9999 ZXM2052 2CPX042463R9999
2 445 1 ZX2053 2CPX042544R9999 ZXM2053 2CPX042464R9999
3 695 1 ZX2054 2CPX042545R9999 ZXM2054 2CPX042465R9999
4 945 1 ZX2055 2CPX042546R9999 ZXM2055 2CPX042466R9999
5 1195 1 ZX2056 2CPX042547R9999 ZXM2056 2CPX042467R9999
6 1445 1 ZX2057 2CPX042805R9999 ZXM2057 2CPX042827R9999
20 x 5 320 1 195 1 ZX2058 2CPX042548R9999 ZXM2058 2CPX042468R9999
2 445 1 ZX2059 2CPX042549R9999 ZXM2059 2CPX042469R9999
3 695 1 ZX2060 2CPX042550R9999 ZXM2060 2CPX042470R9999
4 945 1 ZX2061 2CPX042551R9999 ZXM2061 2CPX042471R9999
5 1195 1 ZX2062 2CPX042552R9999 ZXM2062 2CPX042472R9999
6 1445 1 ZX2063 2CPX042806R9999 ZXM2063 2CPX042828R9999
18
30 x 5 440 1 195 1 ZX2070 2CPX042558R9999 ZXM2070 2CPX042478R9999
2 445 1 ZX2071 2CPX042559R9999 ZXM2071 2CPX042479R9999
3 695 1 ZX2072 2CPX042560R9999 ZXM2072 2CPX042480R9999
4 945 1 ZX2073 2CPX042561R9999 ZXM2073 2CPX042481R9999
5 1195 1 ZX2074 2CPX042562R9999 ZXM2074 2CPX042482R9999
6 1445 1 ZX2075 2CPX042807R9999 ZXM2075 2CPX042829R9999
30 x 10 630 1 195 1 ZX2076 2CPX042563R9999 ZXM2076 2CPX042483R9999
2 445 1 ZX2077 2CPX042564R9999 ZXM2077 2CPX042484R9999
3 695 1 ZX2078 2CPX042565R9999 ZXM2078 2CPX042485R9999
4 945 1 ZX2079 2CPX042566R9999 ZXM2079 2CPX042486R9999
5 1195 1 ZX2080 2CPX042567R9999 ZXM2080 2CPX042487R9999
6 1445 1 ZX2081 2CPX042808R9999 ZXM2081 2CPX042830R9999
