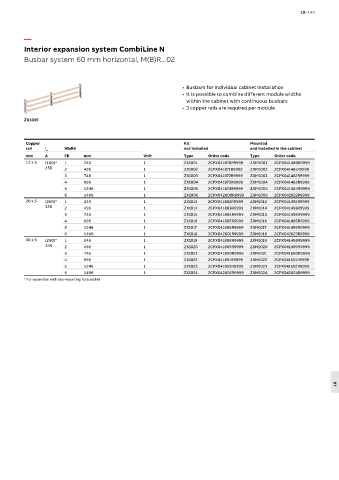

Interior expansion system CombiLine N
Busbar system 60 mm horizontal, M(B)R...02

• Busbars for individual cabinet installation
• It is possible to combine different module widths
within the cabinet with continuous busbars
• 3 copper rails are required per module

ZX1015

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
12 x 5 (100)* 1 246 1 ZX1001 2CPX041870R9999 ZXM1001 2CPX041480R9999
250 2 496 1 ZX1002 2CPX041871R9999 ZXM1002 2CPX041481R9999
3 746 1 ZX1003 2CPX041872R9999 ZXM1003 2CPX041482R9999
4 996 1 ZX1004 2CPX041873R9999 ZXM1004 2CPX041483R9999
5 1246 1 ZX1005 2CPX041874R9999 ZXM1005 2CPX041484R9999
6 1496 1 ZX1006 2CPX042800R9999 ZXM1006 2CPX042822R9999
20 x 5 (250)* 1 246 1 ZX1013 2CPX041882R9999 ZXM1013 2CPX041492R9999
320 2 496 1 ZX1014 2CPX041883R9999 ZXM1014 2CPX041493R9999
3 746 1 ZX1015 2CPX041884R9999 ZXM1015 2CPX041494R9999
4 996 1 ZX1016 2CPX041885R9999 ZXM1016 2CPX041495R9999
5 1246 1 ZX1017 2CPX041886R9999 ZXM1017 2CPX041496R9999
6 1496 1 ZX1018 2CPX042801R9999 ZXM1018 2CPX042823R9999
30 x 5 (250)* 1 246 1 ZX1019 2CPX041888R9999 ZXM1019 2CPX041498R9999
440 2 496 1 ZX1020 2CPX041889R9999 ZXM1020 2CPX041499R9999
3 746 1 ZX1021 2CPX041890R9999 ZXM1021 2CPX041500R9999
4 996 1 ZX1022 2CPX041891R9999 ZXM1022 2CPX041501R9999
5 1246 1 ZX1023 2CPX041892R9999 ZXM1023 2CPX041502R9999
6 1496 1 ZX1024 2CPX042802R9999 ZXM1024 2CPX042824R9999
* For expansion with bus-mounting fuse socket
