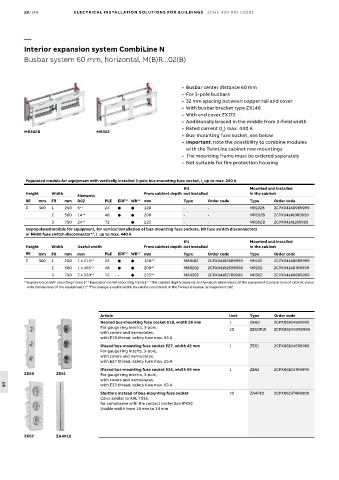

18/148 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Busbar system 60 mm, horizontal, M(B)R...02(B)

• Busbar center distance 60 mm
• For 3-pole busbars
• 32 mm spacing between copper rail and cover
• With busbar bracket type ZX146
• With end cover ZX172
• Additionally braced in the middle from 3-field width
• Rated current (I ) max. 440 A
MR302B MR302 n
• Bus-mounting fuse socket, see below
• Important: note the possibility to combine modules
with the TwinLine cabinet row mountings
• The mounting frame must be ordered separately
• Not suitable for fire protection housing

Populated module for equipment with vertically installed 3-pole bus-mounting fuse socket, I up to max. 250 A
n
Kit Mounted and installed
Height Width From cabinet depth not installed in the cabinet
Elements
RE mm FB mm D02 PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 5* 4 24   120 - - MR102B 2CPX041409R9999
2 500 14* 4 48   200 - - MR202B 2CPX041410R9999
3 750 24* 4 72 -  225 - - MR302B 2CPX041411R9999
Unpopulated module for equipment, for vertical installation of bus-mounting fuse sockets, D0 fuse switch disconnectors
or NH00 fuse switch disconnector* , I up to max. 440 A
3
n
Kit Mounted and installed
Height Width Useful width From cabinet depth not installed in the cabinet
RE mm FB mm mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 1 x 215* 4 24   120* 3 MBR102 2CPX041825R9999 MR102 2CPX041406R9999
2 500 1 x 465* 4 48   200* 3 MBR202 2CPX041826R9999 MR202 2CPX041407R9999
3 750 2 x 320* 4 72 -  225* 3 MBR302 2CPX041827R9999 MR302 2CPX041408R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame | * 3 The cabinet depth depends on the depth dimensions of the equipment (comparison of cabinet views
with dimensions of the equipment) | * 4 The change useable width should be considered in the TwinLine busbar arrangement 242

Article Unit Type Order code
Neozed bus-mounting fuse socket E18, width 26 mm 1 ZE60 2CPX061045R9999
For gauge ring inserts, 3-pole, 10 ZE60P10 2CPX062400R9999
with covers and nameplates,
with E18 thread, safety fuse max. 63 A
Diazed bus-mounting fuse socket E27, width 42 mm 1 ZE61 2CPX061046R9999
For gauge ring inserts, 3-pole,
with covers and nameplates,
with E27 thread, safety fuse max. 25 A
Diazed bus-mounting fuse socket E33, width 56 mm 1 ZE62 2CPX061047R9999
ZE60 ZE61 For gauge ring inserts, 3-pole,
with covers and nameplates,
with E33 thread, safety fuse max. 63 A
18
Shutters instead of bus-mounting fuse socket 10 ZA4P10 2CPX062374R9999
Color similar to RAL 7035,
for compliance with the contact protection IPXXC
Usable width from 16 mm to 34 mm

ZE62 ZA4P10
