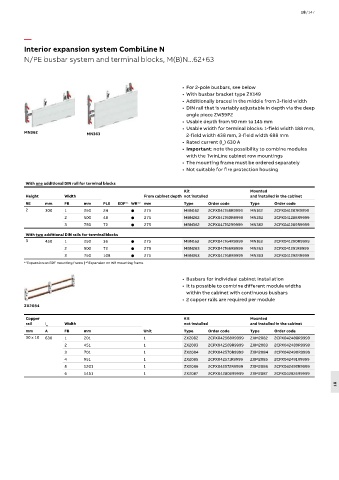

Interior expansion system CombiLine N
N/PE busbar system and terminal blocks, M(B)N...62+63
• For 2-pole busbars, see below
• With busbar bracket type ZX149
• Additionally braced in the middle from 3-field width
• DIN rail that is variably adjustable in depth via the deep
angle piece ZW59P2
• Usable depth from 90 mm to 145 mm
• Usable width for terminal blocks: 1-field width 188 mm,
MN362 MN363 2-field width 438 mm, 3-field width 688 mm
• Rated current (I ) 630 A
n
• Important: note the possibility to combine modules
with the TwinLine cabinet row mountings
• The mounting frame must be ordered separately
• Not suitable for fire protection housing
With one additional DIN rail for terminal blocks
Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 24 275 MBN162 2CPX041758R9999 MN162 2CPX041287R9999
2 500 48 275 MBN262 2CPX041760R9999 MN262 2CPX041288R9999
3 750 72 275 MBN362 2CPX041762R9999 MN362 2CPX041289R9999
With two additional DIN rails for terminal blocks
3 450 1 250 36 275 MBN163 2CPX041764R9999 MN163 2CPX041290R9999
2 500 72 275 MBN263 2CPX041766R9999 MN263 2CPX041291R9999
3 750 108 275 MBN363 2CPX041768R9999 MN363 2CPX041292R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
• Busbars for individual cabinet installation
• It is possible to combine different module widths
within the cabinet with continuous busbars
• 2 copper rails are required per module
ZX2084
Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
30 x 10 630 1 201 1 ZX2082 2CPX042568R9999 ZXM2082 2CPX042488R9999
2 451 1 ZX2083 2CPX042569R9999 ZXM2083 2CPX042489R9999
3 701 1 ZX2084 2CPX042570R9999 ZXM2084 2CPX042490R9999
4 951 1 ZX2085 2CPX042571R9999 ZXM2085 2CPX042491R9999
5 1201 1 ZX2086 2CPX042572R9999 ZXM2086 2CPX042492R9999
6 1451 1 ZX2087 2CPX042803R9999 ZXM2087 2CPX042825R9999
