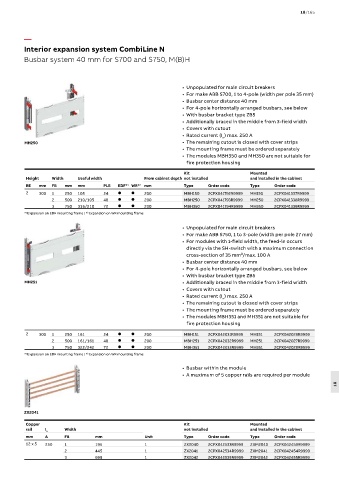

Interior expansion system CombiLine N
Busbar system 40 mm for S700 and S750, M(B)H

• Unpopulated for main circuit breakers
• For make ABB S700, 1 to 4-pole (width per pole 35 mm)
• Busbar center distance 40 mm
• For 4-pole horizontally arranged busbars, see below
• With busbar bracket type ZB5
• Additionally braced in the middle from 3-field width
• Covers with cutout
• Rated current (I ) max. 250 A
n
MH250 • The remaining cutout is closed with cover strips
• The mounting frame must be ordered separately
• The modules MBH350 and MH350 are not suitable for
fire protection housing
Kit Mounted
Height Width Useful width From cabinet depth not installed and installed in the cabinet
RE mm FB mm mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 105 24   200 MBH150 2CPX041792R9999 MH150 2CPX041337R9999
2 500 210/105 48   200 MBH250 2CPX041793R9999 MH250 2CPX041338R9999
3 750 315/210 72   200 MBH350 2CPX041794R9999 MH350 2CPX041339R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Unpopulated for main circuit breakers
• For make ABB S750, 1 to 3-pole (width per pole 27 mm)
• For modules with 1-field width, the feed-in occurs
directly via the SH-switch with a maximum connection
cross-section of 35 mm²/max. 100 A
• Busbar center distance 40 mm
• For 4-pole horizontally arranged busbars, see below
• With busbar bracket type ZB5
MH251 • Additionally braced in the middle from 3-field width
• Covers with cutout
• Rated current (I ) max. 250 A
n
• The remaining cutout is closed with cover strips
• The mounting frame must be ordered separately
• The modules MBH351 and MH351 are not suitable for
fire protection housing

2 300 1 250 161 24   200 MBH151 2CPX042031R9999 MH151 2CPX042026R9999
2 500 161/161 48   200 MBH251 2CPX042032R9999 MH251 2CPX042027R9999
3 750 322/242 72   200 MBH351 2CPX042033R9999 MH351 2CPX042028R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Busbar within the module
• A maximum of 5 copper rails are required per module
18

ZX2041
Copper Kit Mounted
rail I Width not installed and installed in the cabinet
n
mm A FB mm Unit Type Order code Type Order code
12 x 5 250 1 195 1 ZX2040 2CPX042533R9999 ZXM2040 2CPX042453R9999
2 445 1 ZX2041 2CPX042534R9999 ZXM2041 2CPX042454R9999
3 695 1 ZX2042 2CPX042535R9999 ZXM2042 2CPX042455R9999
