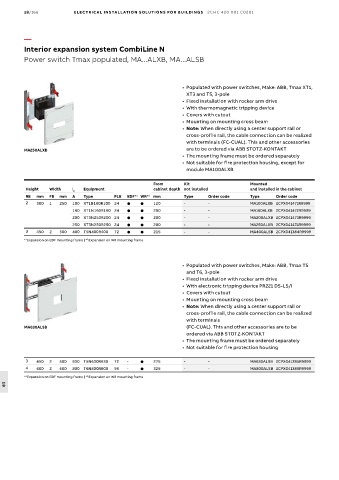

18/166 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Power switch Tmax populated, MA...ALXB, MA...ALSB

• Populated with power switches, Make: ABB, Tmax XT1,
XT3 and T5, 3-pole
• Fixed installation with rocker arm drive
• With thermomagnetic tripping device
• Covers with cutout
• Mounting on mounting cross beam
• Note: When directly using a center support rail or
cross-profile rail, the cable connection can be realized
with terminals (FC-CUAL). This and other accessories
MA250ALXB are to be ordered via ABB STOTZ-KONTAKT
• The mounting frame must be ordered separately
• Not suitable for fire protection housing, except for
module MA100ALXB

From Kit Mounted
Height Width I n Equipment cabinet depth not installed and installed in the cabinet
RE mm FB mm A Type PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 100 XT1B160R100 24   120 - - MA100ALXB 2CPX041471R9999
160 XT1N160R160 24   200 - - MA160ALXB 2CPX041472R9999
200 XT3N250R200 24   200 - - MA200ALXB 2CPX041473R9999
250 XT3N250R250 24   200 - - MA250ALXB 2CPX041474R9999
3 450 2 500 400 T5N400R400 72   215 - - MA400ALSB 2CPX041384R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Populated with power switches, Make: ABB, Tmax T5
and T6, 3-pole
• Fixed installation with rocker arm drive
• With electronic tripping device PR221 DS-LS/I
• Covers with cutout
• Mounting on mounting cross beam
• Note: When directly using a center support rail or
cross-profile rail, the cable connection can be realized
with terminals
MA630ALSB (FC-CUAL). This and other accessories are to be
ordered via ABB STOTZ-KONTAKT
• The mounting frame must be ordered separately
• Not suitable for fire protection housing

3 450 2 500 630 T5N630R630 72 -  275 - - MA630ALSB 2CPX041385R9999
4 600 2 500 800 T6N800R800 96 -  325 - - MA800ALSB 2CPX041386R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
