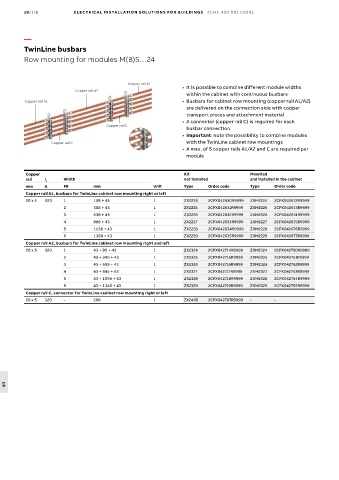

18/178 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
TwinLine busbars
Row mounting for modules M(B)S…24

Copper rail A1
• It is possible to combine different module widths
Copper rail A2
within the cabinet with continuous busbars
Copper rail A1 • Busbars for cabinet row mounting (copper rail A1/A2)
are delivered on the connection side with copper
transport pieces and attachment material
• A connector (copper rail C) is required for each
Copper rail C
busbar connection
• Important: note the possibility to combine modules
Copper rail C with the TwinLine cabinet row mountings
• A max. of 5 copper rails A1/A2 and C are required per
module

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
Copper rail A1, busbars for TwinLine cabinet row mounting right or left
20 x 5 320 1 138 + 43 1 ZX2224 2CPX042630R9999 ZXM2224 2CPX042672R9999
2 388 + 43 1 ZX2225 2CPX042631R9999 ZXM2225 2CPX042673R9999
3 638 + 43 1 ZX2226 2CPX042632R9999 ZXM2226 2CPX042674R9999
4 888 + 43 1 ZX2227 2CPX042633R9999 ZXM2227 2CPX042675R9999
5 1138 + 43 1 ZX2228 2CPX042634R9999 ZXM2228 2CPX042676R9999
6 1388 + 43 1 ZX2229 2CPX042635R9999 ZXM2229 2CPX042677R9999
Copper rail A2, busbars for TwinLine cabinet row mounting right and left
20 x 5 320 1 43 + 95 + 43 1 ZX2324 2CPX042714R9999 ZXM2324 2CPX042750R9999
2 43 + 345 + 43 1 ZX2325 2CPX042715R9999 ZXM2325 2CPX042751R9999
3 43 + 595 + 43 1 ZX2326 2CPX042716R9999 ZXM2326 2CPX042752R9999
4 43 + 845 + 43 1 ZX2327 2CPX042717R9999 ZXM2327 2CPX042753R9999
5 43 + 1095 + 43 1 ZX2328 2CPX042718R9999 ZXM2328 2CPX042754R9999
6 43 + 1345 + 43 1 ZX2329 2CPX042719R9999 ZXM2329 2CPX042755R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
20 x 5 320 - 208 1 ZX2405 2CPX042787R9999 - -

18
