18/176 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

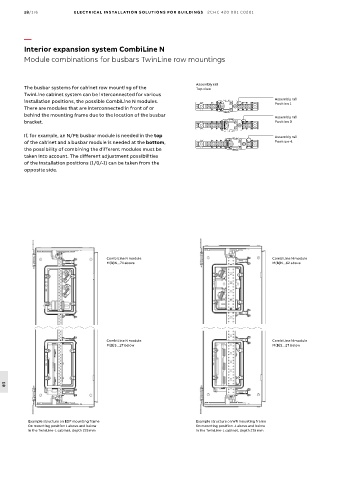

Interior expansion system CombiLine N
Module combinations for busbars TwinLine row mountings

Assembly rail
The busbar systems for cabinet row mounting of the Top view
TwinLine cabinet system can be interconnected for various
installation positions, the possible CombiLine N modules. Assembly rail
Position 1
There are modules that are interconnected in front of or
behind the mounting frame due to the location of the busbar Assembly rail
bracket. Position 0

If, for example, an N/PE busbar module is needed in the top Assembly rail
of the cabinet and a busbar module is needed at the bottom, Position -1
the possibility of combining the different modules must be
taken into account. The different adjustment possibilities
of the installation positions (1/0/-1) can be taken from the
opposite side.

CombiLine N module CombiLine N module
M(B)N...74 above M(B)N...62 above

CombiLine N module CombiLine N module
M(B)S...27 below M(B)S...27 below

18

Example structure on EDF mounting frame Example structure on WR mounting frame
On mounting position 1 above and below On mounting position -1 above and below
in the TwinLine-L cabinet, depth 275 mm in the TwinLine-L cabinet, depth 275 mm
