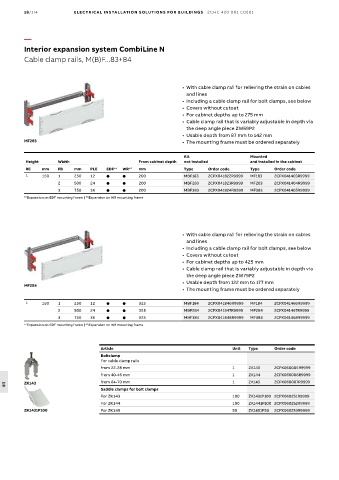

18/174 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Cable clamp rails, M(B)F...83+84

• With cable clamp rail for relieving the strain on cables
and lines
• Including a cable clamp rail for bolt clamps, see below
• Covers without cutout
• For cabinet depths up to 275 mm
• Cable clamp rail that is variably adjustable in depth via
the deep angle piece ZW59P2
• Usable depth from 87 mm to 142 mm
MF283 • The mounting frame must be ordered separately

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* 1 WR* 2 mm Type Order code Type Order code
1 150 1 250 12   200 MBF183 2CPX041822R9999 MF183 2CPX041403R9999
2 500 24   200 MBF283 2CPX041823R9999 MF283 2CPX041404R9999
3 750 36   200 MBF383 2CPX041824R9999 MF383 2CPX041405R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• With cable clamp rail for relieving the strain on cables
and lines
• Including a cable clamp rail for bolt clamps, see below
• Covers without cutout
• For cabinet depths up to 425 mm
• Cable clamp rail that is variably adjustable in depth via
the deep angle piece ZW79P2
• Usable depth from 122 mm to 177 mm
MF284
• The mounting frame must be ordered separately

1 150 1 250 12   325 MBF184 2CPX041846R9999 MF184 2CPX041466R9999
2 500 24   325 MBF284 2CPX041847R9999 MF284 2CPX041467R9999
3 750 36   325 MBF384 2CPX041848R9999 MF384 2CPX041468R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

Article Unit Type Order code
Boltclamp
For cable clamp rails
from 22-28 mm 1 ZK143 2CPX060005R9999
from 40-46 mm 1 ZK144 2CPX060006R9999
ZK143 from 64-70 mm 1 ZK145 2CPX060007R9999
18
Saddle clamps for bolt clamps
For ZK143 100 ZK1431P100 2CPX060251R9999
For ZK144 100 ZK1441P100 2CPX060252R9999
ZK1431P100 For ZK145 50 ZK1451P50 2CPX060253R9999
