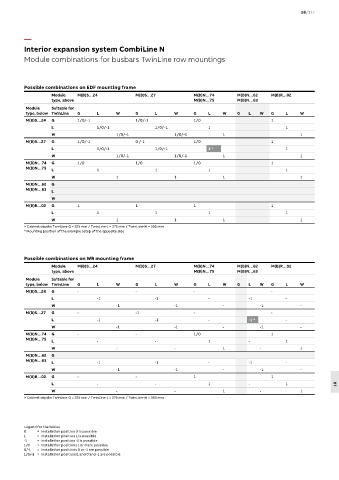

Interior expansion system CombiLine N
Module combinations for busbars TwinLine row mountings

Possible combinations on EDF mounting frame
Module M(B)S…24 M(B)S…27 M(B)N…74 M(B)N…62 M(B)R…02
type, above M(B)N…75 M(B)N…63
Module Suitable for
type, below TwinLine G L W G L W G L W G L W G L W
M(B)S…24 G 1/0/-1 1/0/-1 1/0 1
L 1/0/-1 1/0/-1 1 1
W 1/0/-1 1/0/-1 1 1
M(B)S…27 G 1/0/-1 0 /-1 1/0 1
L 1/0/-1 1/0/-1 1 * 1
W 1/0/-1 1/0/-1 1 1
M(B)N…74 G 1/0 1/0 1/0 1
M(B)N…75
L 1 1 1 1
W 1 1 1 1
M(B)N…62 G
M(B)N…63
L
W
M(B)R…02 G 1 1 1 1
L 1 1 1 1
W 1 1 1 1
> Cabinet depths TwinLine-G = 225 mm / TwinLine-L = 275 mm / TwinLine-W = 350 mm
* Mounting position of the example setup of the opposite side

Possible combinations on WR mounting frame
Module M(B)S…24 M(B)S…27 M(B)N…74 M(B)N…62 M(B)R…02
type, above M(B)N…75 M(B)N…63
Module Suitable for
type, below TwinLine G L W G L W G L W G L W G L W
M(B)S…24 G - - - -
L -1 -1 - -1 -
W -1 -1 - -1 -
M(B)S…27 G - -1 - -
L -1 -1 - -1 * -
W -1 -1 - -1 -
M(B)N…74 G - - 1/0 1
M(B)N…75
L - - 1 - 1
W - - 1 - 1
M(B)N…62 G
M(B)N…63 L -1 -1 - -1 -
W -1 -1 - -1 -
M(B)R…02 G - - 1 1
L - - 1 - 1 18
W - - 1 - 1
> Cabinet depths TwinLine-G = 225 mm / TwinLine-L = 275 mm / TwinLine-W = 350 mm

Legend for the tables
0 = Installation position 0 is possible
1 = Installation position 1 is possible
-1 = Installation position -1 is possible
1/0 = Installation positions 1 or 0 are possible
0/-1 = Installation positions 0 or -1 are possible
1/0/-1 = Installation positions1 and 0 and -1 are possible
