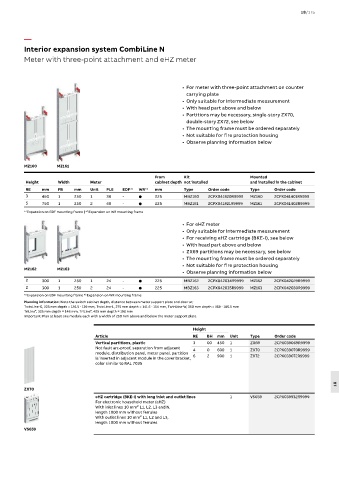

Interior expansion system CombiLine N
Meter with three-point attachment and eHZ meter

• For meter with three-point attachment on counter
carrying plate
• Only suitable for intermediate measurement
• With head part above and below
• Partitions may be necessary, single-story ZX70,
double-story ZX72, see below
• The mounting frame must be ordered separately
• Not suitable for fire protection housing
• Observe planning information below

MZ160 MZ161
From Kit Mounted
Height Width Meter cabinet depth not installed and installed in the cabinet
RE mm FB mm Unit PLE EDF* 1 WR* 2 mm Type Order code Type Order code
3 450 1 250 1 36 -  225 MBZ160 2CPX041820R9999 MZ160 2CPX041401R9999
5 750 1 250 2 60 -  225 MBZ161 2CPX041821R9999 MZ161 2CPX041402R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
• For eHZ meter
• Only suitable for intermediate measurement
• For receiving eHZ cartridge (BKE-I), see below
• With head part above and below
• ZX69 partitions may be necessary, see below
• The mounting frame must be ordered separately
• Not suitable for fire protection housing
MZ162 MZ163
• Observe planning information below
2 300 1 250 1 24 -  225 MBZ162 2CPX042034R9999 MZ162 2CPX042029R9999
2 300 1 250 2 24 -  225 MBZ163 2CPX042035R9999 MZ163 2CPX042030R9999
* 1 Expansion on EDF mounting frame * 2 Expansion on WR mounting frame
Planning information: Note the switch cabinet depth, distance between meter support plate and door at:
TwinLine-G, 225 mm depth = 126.5 - 139 mm, TwinLine-L, 275 mm depth = 141.5 - 154 mm, TwinLine-W, 350 mm depth = 168 - 180.5 mm
TriLine ® , 325 mm depth = 148 mm, TriLine ® , 425 mm depth = 198 mm
Important: Plan at least one module each with a width of 250 mm above and below the meter support plate

Height
Article RE BH mm Unit Type Order code
Vertical partitions, plastic 3 00 450 1 ZX69 2CPX039069R9999
Not fault arc-proof, separation from adjacent 4 0 600 1 ZX70 2CPX039070R9999
module, distribution panel, meter panel, partition
is inserted in adjacent module in the cover bracket, 6 2 900 1 ZX72 2CPX039072R9999
color similar to RAL 7035

18
ZX70
eHZ cartridge (BKE-I) with long inlet and outlet lines 1 VS659 2CPX039932R9999
For electronic household meter (eHZ)
With inlet lines 10 mm² L1, L2, L3 and N,
length 1000 mm without ferrules
With outlet lines 10 mm² L1, L2 and L3,
length 1000 mm without ferrules
VS659
