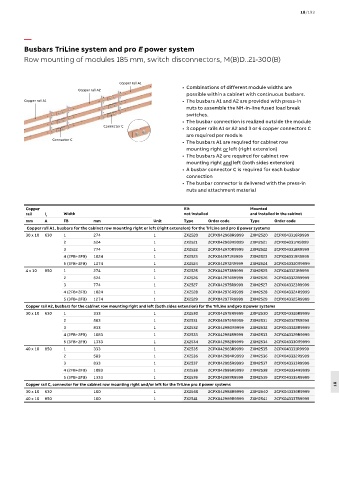

18/193

—
Busbars TriLine system and pro E power system
Row mounting of modules 185 mm, switch disconnectors, M(B)D..21-300(B)

Copper rail A1
• Combinations of different module widths are
Copper rail A2
possible within a cabinet with continuous busbars.
Copper rail A1 • The busbars A1 and A2 are provided with press-in
nuts to assemble the NH-in-line fused load break
switches.
• The busbar connection is realized outside the module
Connector C
• 3 copper rails A1 or A2 and 3 or 6 copper connectors C
are required per module
Connector C
• The busbars A1 are required for cabinet row
mounting right or left (right extension)
• The busbars A2 are required for cabinet row
mounting right and left (both sides extension)
• A busbar connector C is required for each busbar
connection
• The busbar connector is delivered with the press-in
nuts and attachment material

Copper Kit Mounted
rail I Width not installed and installed in the cabinet
n
mm A FB mm Unit Type Order code Type Order code
Copper rail A1, busbars for the cabinet row mounting right or left (right extension) for the TriLine and pro E power systems
30 x 10 630 1 274 1 ZX2520 2CPX042968R9999 ZXM2520 2CPX043316R9999
2 524 1 ZX2521 2CPX042969R9999 ZXM2521 2CPX043317R9999
3 774 1 ZX2522 2CPX042970R9999 ZXM2522 2CPX043318R9999
4 (2FB+2FB) 1024 1 ZX2523 2CPX042971R9999 ZXM2523 2CPX043319R9999
5 (3FB+2FB) 1274 1 ZX2524 2CPX042972R9999 ZXM2524 2CPX043320R9999
4 x 10 850 1 274 1 ZX2525 2CPX042973R9999 ZXM2525 2CPX043321R9999
2 524 1 ZX2526 2CPX042974R9999 ZXM2526 2CPX043322R9999
3 774 1 ZX2527 2CPX042975R9999 ZXM2527 2CPX043323R9999
4 (2FB+2FB) 1024 1 ZX2528 2CPX042976R9999 ZXM2528 2CPX043324R9999
5 (3FB+2FB) 1274 1 ZX2529 2CPX042977R9999 ZXM2529 2CPX043325R9999
Copper rail A2, busbars for the cabinet row mounting right and left (both sides extension) for the TriLine and pro E power systems
30 x 10 630 1 333 1 ZX2530 2CPX042978R9999 ZXM2530 2CPX043326R9999
2 583 1 ZX2531 2CPX042979R9999 ZXM2531 2CPX043327R9999
3 833 1 ZX2532 2CPX042980R9999 ZXM2532 2CPX043328R9999
4 (2FB+2FB) 1083 1 ZX2533 2CPX042981R9999 ZXM2533 2CPX043329R9999
5 (3FB+2FB) 1333 1 ZX2534 2CPX042982R9999 ZXM2534 2CPX043330R9999
40 x 10 850 1 333 1 ZX2535 2CPX042983R9999 ZXM2535 2CPX043331R9999
2 583 1 ZX2536 2CPX042984R9999 ZXM2536 2CPX043332R9999
3 833 1 ZX2537 2CPX042985R9999 ZXM2537 2CPX043333R9999
4 (2FB+2FB) 1083 1 ZX2538 2CPX042986R9999 ZXM2538 2CPX043334R9999
5 (3FB+2FB) 1333 1 ZX2539 2CPX042987R9999 ZXM2539 2CPX043335R9999
Copper rail C, connector for the cabinet row mounting right and/or left for the TriLine pro E power systems 18
30 x 10 630 100 1 ZX2540 2CPX042988R9999 ZXM2540 2CPX043336R9999
40 x 10 850 100 1 ZX2541 2CPX042989R9999 ZXM2541 2CPX043337R9999
