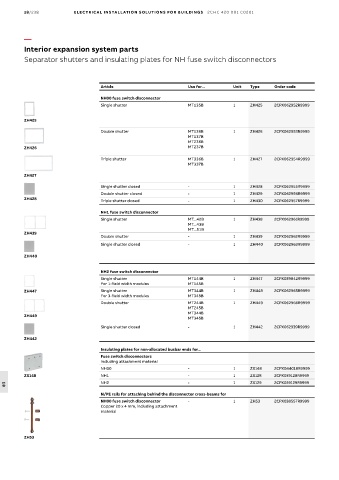

18/238 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system parts
Separator shutters and insulating plates for NH fuse switch disconnectors

Article Use for... Unit Type Order code

NH00 fuse switch disconnector
Single shutter MT135B 1 ZH425 2CPX062952R9999

ZH425
Double shutter MT136B 1 ZH426 2CPX062953R9999
MT137B
MT236B
ZH426 MT237B
Triple shutter MT336B 1 ZH427 2CPX062954R9999
MT337B
ZH427
Single shutter closed - 1 ZH428 2CPX062955R9999
Double shutter closed - 1 ZH429 2CPX062956R9999
ZH428 Triple shutter closed - 1 ZH430 2CPX062957R9999

NH1 fuse switch disconnector
Single shutter MT...42B 1 ZH438 2CPX062961R9999
MT...43B
MT...51B
ZH439
Double shutter - 1 ZH439 2CPX062962R9999
Single shutter closed - 1 ZH440 2CPX062963R9999

ZH440

NH2 fuse switch disconnector
Single shutter MT144B 1 ZH447 2CPX039842R9999
For 1-field width modules MT145B
ZH447 Single shutter MT344B 1 ZH448 2CPX062965R9999
For 3-field width modules MT345B
Double shutter MT244B 1 ZH449 2CPX062966R9999
MT245B
MT344B
ZH449
MT345B
Single shutter closed - 1 ZH442 2CPX062939R9999

ZH442
Insulating plates for non-allocated busbar ends for...
Fuse switch disconnectors
including attachment material
NH00 - 1 ZX148 2CPX044018R9999
ZX148 NH1 - 1 ZX128 2CPX039128R9999
NH2 - 1 ZX129 2CPX039129R9999
18
N/PE rails for attaching behind the disconnector cross-beams for
NH00 fuse switch disconnector - 1 ZH53 2CPX038557R9999
Copper 20 x 4 mm, including attachment
material

ZH53
