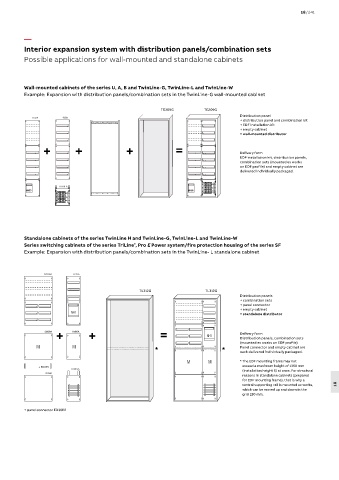

Interior expansion system with distribution panels/combination sets
Possible applications for wall-mounted and standalone cabinets

Wall-mounted cabinets of the series U, A, B and TwinLine-G, TwinLine-L and TwinLine-W
Example: Expansion with distribution panels/combination sets in the TwinLine-G wall-mounted cabinet

TG209G TG209G
Distribution panel
+ distribution panel and combination kit
+ EDF installation kit
+ empty cabinet
= wall-mounted distributor

Delivery form
EDF installation kit, distribution panels,
combination sets (mounted ex works
on EDF profile) and empty cabinet are
delivered individually packaged.

Standalone cabinets of the series TwinLine H and TwinLine-G, TwinLine-L and TwinLine-W
Series switching cabinets of the series TriLine , Pro E Power system/fire protection housing of the series SF
®
Example: Expansion with distribution panels/combination sets in the TwinLine- L standalone cabinet

TL312G TL312G
Distribution panels
+ combination sets
+ panel connector
+ empty cabinet
= standalone distributor

Delivery form
Distribution panels, combination sets
(mounted ex works on EDF profile)
Panel connector and empty cabinet are
each delivered individually packaged.
* The EDF mounting frame may not
exceed a maximum height of 1350 mm
(installation height 5) at once. For structural
reasons in standalone cabinets (prepared
for EDF mounting frame), that is why a
central supporting rail is mounted ex works, 18
which can be moved up and down in the
grid 150 mm.

+ panel connector ED30P2
